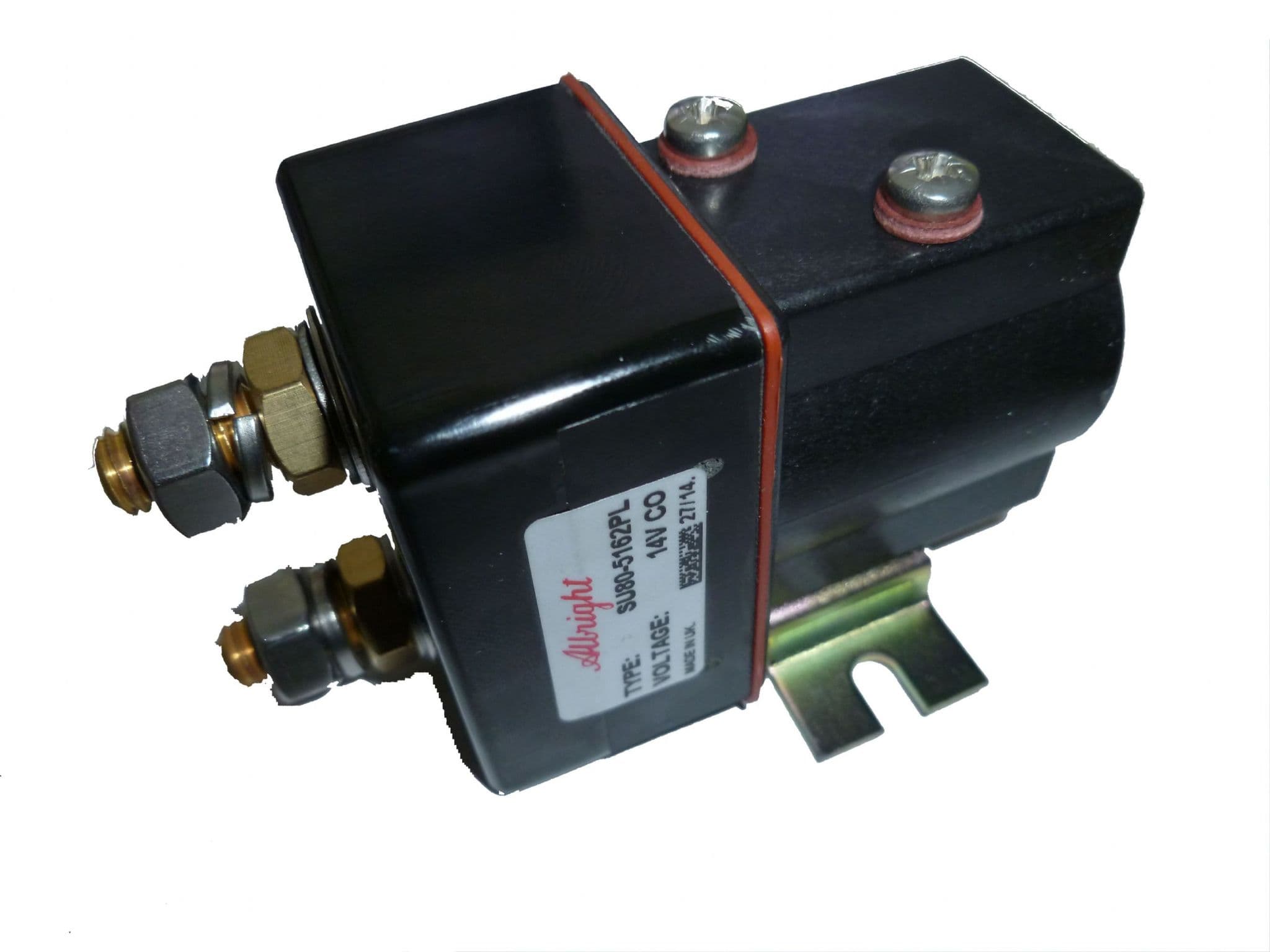

CONTACTOR (extremely heavy duty relay) 12 -14v coil - ALT/CONT19-5062P-07
Manufactured by ALLBRIGHT INTERNATIONAL, the leading manufacturers of heavy amperage contactors. The ALT/CONT19-5014 ALLBRIGHT Contactor features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity. Mounting can be vertical or horizontal, when vertical the M8 contact studs should point upwards.
Ideal for building Assured Start systems, or simply for a project which requires a "bullet proof" relay type unit which will perform continuously at extremely high amperages.

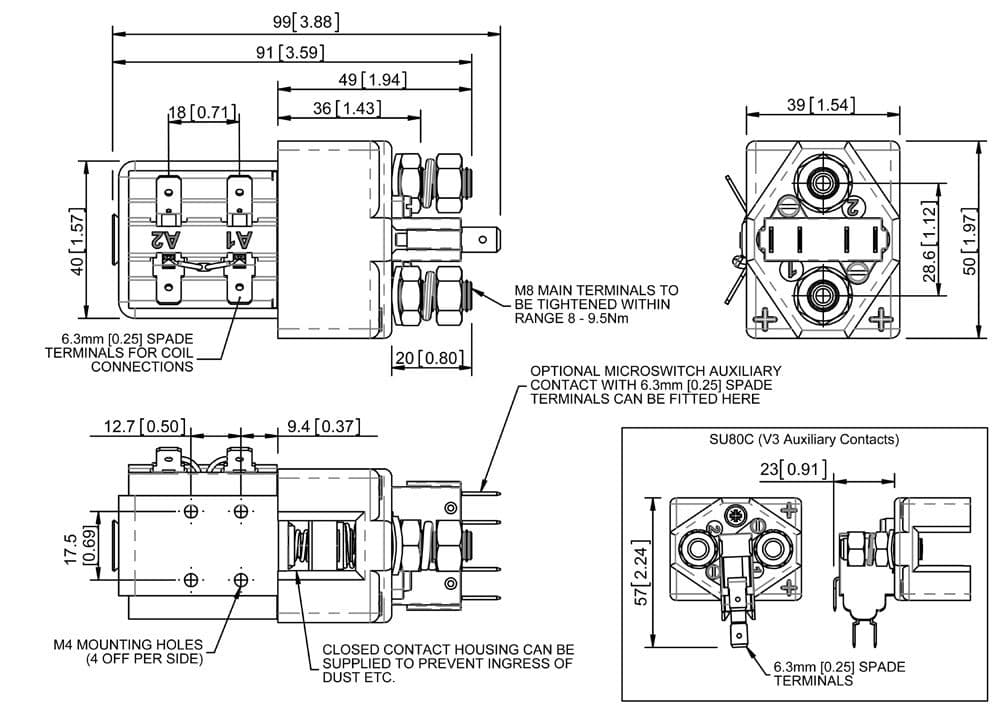

Connection :-
Main power contacts 2 x M8 stud terminals
Field windings 2 x 6.35mm male faston terminals
Specification :-
Coil voltage 12 - 14vdc
Coil current 680mA (0.68Amps)
IP66 rating for water ingress protection
Contact rating
@5% Duty 725A (ideal for engine cranking applications)
@30% Duty 365A
@40% Duty 315A
@50% Duty 280A
@60% Duty 260A
@70% Duty 240A - Ideal for high power split charge relay systems
Manufactured by ALLBRIGHT INTERNATIONAL, the leading manufacturers of heavy amperage contactors. The ALT/CONT19-5014 ALLBRIGHT Contactor features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity. Mounting can be vertical or horizontal, when vertical the M8 contact studs should point upwards.
Ideal for building Assured Start systems, or simply for a project which requires a "bullet proof" relay type unit which will perform continuously at extremely high amperages.
Connection :-
Main power contacts 2 x M8 stud terminals
Field windings 2 x 6.35mm male faston terminals
Specification :-
Coil voltage 12 - 14vdc
Coil current 680mA (0.68Amps)
IP66 rating for water ingress protection
Contact rating
@5% Duty 725A (ideal for engine cranking applications)
@30% Duty 365A
@40% Duty 315A
@50% Duty 280A
@60% Duty 260A
@70% Duty 240A - Ideal for high power split charge relay systems
