Power distribution 12 way Fusebox with twin positive busbars & a single negative busbar. Ideal for system building
Select your option from the RED BOX below:
ALT/FH5026B 12 way fusebox - 2 x pos bus & 1 x neg
£24.67 excluding VAT
£29.60 including VAT

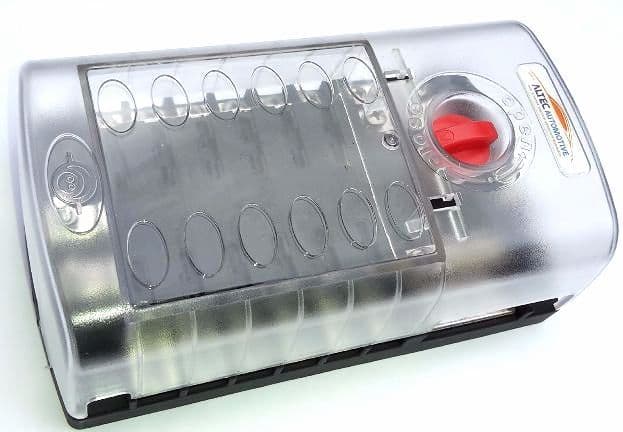

12 way Fusebox with twin positive "Busbars" and 1 x Negative "Busbar"

Standard blade type fuse box


Common busbar for the negative connection.

Each bank of 6 fuses has its own positive supply source.

Ideal for projects, motor homes, boats etc

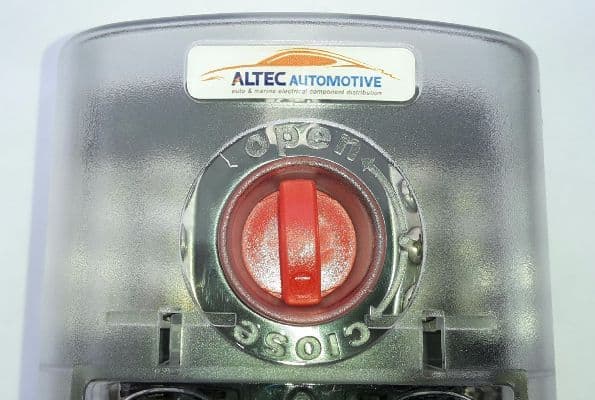

Lid is designed to hold spare fuses.

Consists of two separate banks of 6 fuses with screw connections.
Each bank of fuses has a common feed for main (+) positive connection.

Common negative bus-bar provides 12 screw connections for a common negative

Main connections are made by 5.3mm shaft dia. studs.
All secondary connections are made by 4.3mm shaft dia. screws.


Perfect for Camper Vans, Motorhomes, Boats etc.

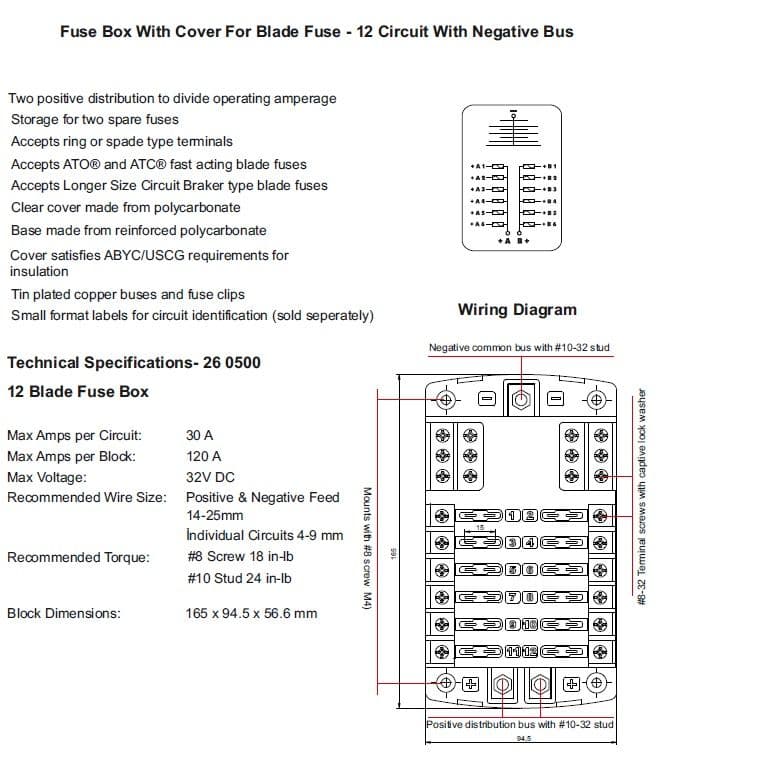

Specifications:
* Maximum Amperage per circuit-30Amps
* Maximum Amperage -100Amps
* Maximum voltage-32VDC
* Base material-Polycarbonate
* Cover Material-Clear polycarbonate

ATC Fuse Specifications:
* Fuses available 1-40Amps
* Maximum Voltage 32 Volts DC

Positive Circuit A: 1x common bus and 6 standard blade fuses.
Positive Circuit B: 1x common bus and 6 standard blade fuses.
Negative Circuit: 1x common bus and 12 pole connector block.
Positive and Negative common buses: M5 studs.

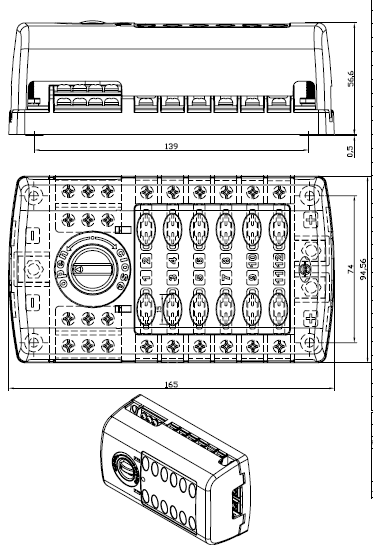

Sizes: L165 x W95 x H57mm

Accepts standard blade fuses.



Also available:- ALT/DECAL-LEGEND

Pack of 84 self adhesive laminated labels to identify the function of each fuse.

The labels are especially designed to fit into the recesses in the fusebox lid.
Click on the image above to zoom in and view the labels.
