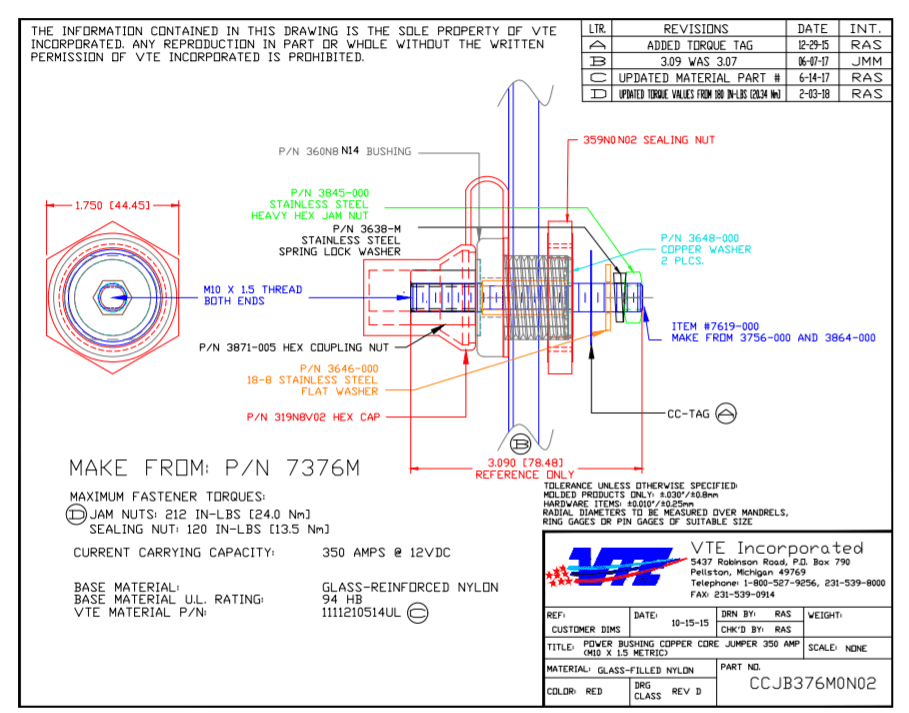

ALT/CCJB376FMKM-1-09
COPPER CORE JUMPER BUSHING
350 Amp

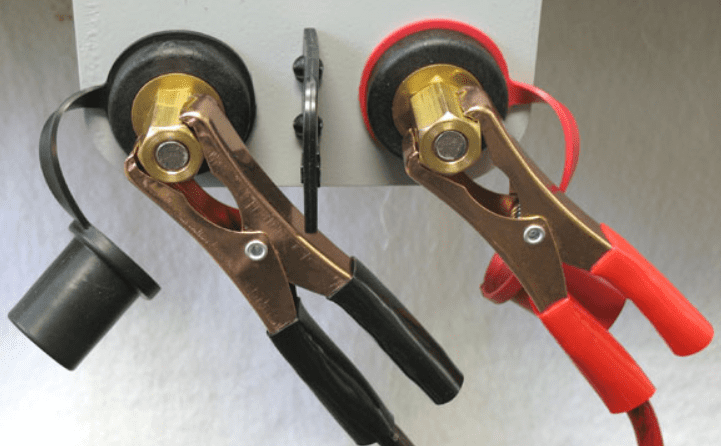

Ideal for when your battery is hidden away
This flush mount kit fits to a panel or bulkhead
Stud size 9mm
.

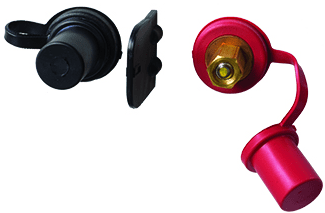

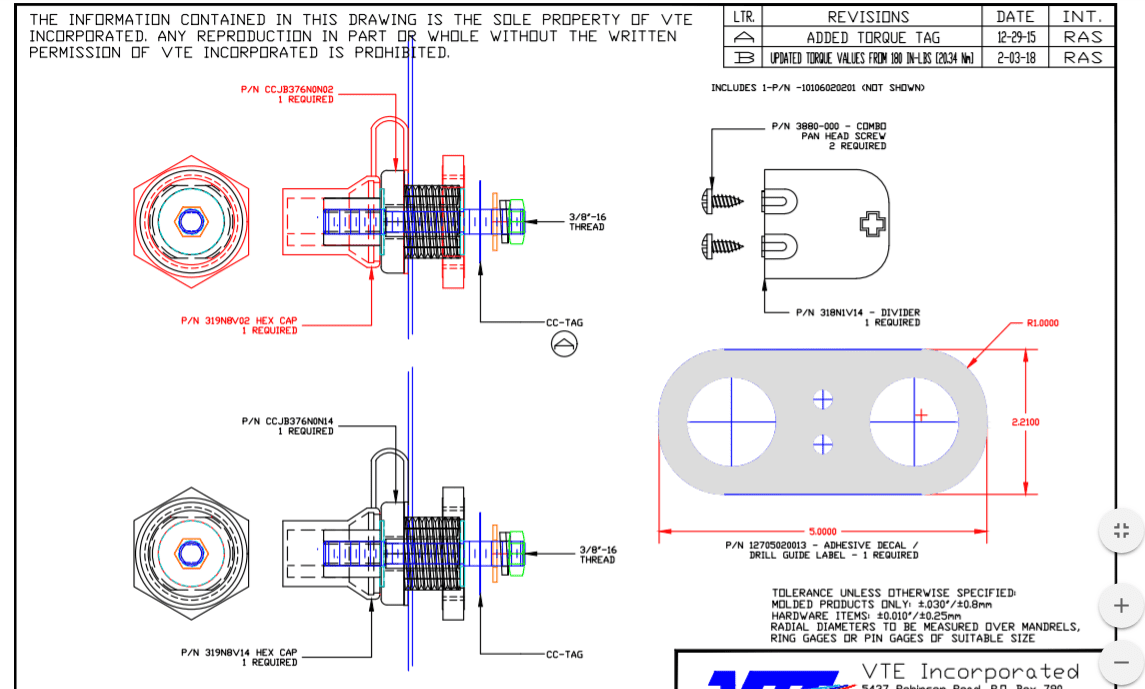

Kit includes: 1 red and 1 black jumper bushing, 1 adhesive template drilling guide and 1 plastic driver.
- For panel thickness up to 3/8"
- Easy to assemble and install
- Max Amperage: 350 amp @ 12 vdc
- Max Voltage: 48 vdc
- Available in Red & Black
- Bushing Material : Glass-Filled Nylon
- Post Material : Nickel Plated Mild Steel
- Hex Cap Material : Brass
HS code 85369010
Power Distribution Post NEGATIVE - 5mm SINGLE POINT ALT/77010N14-09
Accepts (5mm) eyelets
Power Distribution Post POSITIVE - 5mm SINGLE POINT ALT/77010N02-09
Accepts 5mm eyelets
12 WAY
NYLON NOT POLYTHENE
Power Distribution Post POSITIVE - 6mm SINGLE POINT ALT/77025N02-1-09
Accepts 6mm eyelets
ALT/77131N02-01
Power Distribution Post 160 Amp POSITIVE - 8mm STUD SINGLE POINT ALT/77131N02-01
Accepts 8mm eyelets
ALT/77131N14-01
Power Distribution Post 160 Amp negative - 8mm STUD SINGLE POINT ALT/77131N14-01
Accepts 8mm eyelets
Power Distribution Post 240 Amp NEGATIVE - 10mm STUD SINGLE POINT ALT/77137N14-01
Accepts 10mm eyelets
Power Distribution Post 160 Amp POSITIVE - 10mm STUD 1 + 8 POINT ALT/77831N02-01
BULK PRICES AVAILABLE for packs of 10 , 50 or 100
UK Manufactured
35mm2 CSA (Cross sectional area)
(#2.0 AWG)
451/0.30 strands
PVC INSULATED 240.00 AMP CABLE.
Available in RED or BLACK
Tinned cable for MARINE use available
550 Amp peak rating
Ideal for disconnecting the vehicles main battery cable feed to prevent battery discharge
ALT/BM1-01
40mm2 CSA (Cross sectional area)
(#1.5 AWG)
539/0.30 strands
PVC INSULATED 300.00 AMP CABLE.
Available in RED or BLACK
Also available as Tinned cable for MARINE use available in 16mm2, 25mm2, 35mm2, 50mm2, 70mm2 & 95mm2 sizes
