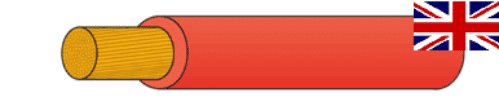

40mm2 CSA (CSA = Cross sectional area) (# 1.5AWG) 539/0.30 strands PVC INSULATED 300AMP CABLE. Suitable cable eyelets are 35-6, 35-8, 35-10, 35-12, 50-14, 50-16 Resistant to petrol, lubricating oils and diluted acids. Highly flexible Temp. range -30c - +70c Specification: Overall Dia. 12.7mm Number Of Conductors = 539 Thickness Of Each Conductor = 0.30mm Maximum Constant Current = 300Amps Maximum Voltage = 60 VDC Weight =460g/mtr RESISTANCE PER METRE @ 20 DEGREES C = 0.000757 ohms MANUFACTURED TO ISO6722 : 2006 (CLASS B) AVAILABLE BY THE 1MTR OR IN 10M, 30M OR 50MTR REELS
|
70mm2 Battery cable 485.00 Amp RED & BLACK Available also in "Tinned " for marine use
PROFESSIONAL GRADE CABLING
Sold per mtr, or in full reels of 10m, 30m, 50m or 500m
Three sizes available
40mm2 , 60mm2 & 95mm2 cable sizes.
Three sizes available
40mm2 , 60mm2 cable & 95mm2 sizes.
Battery terminal with M10 stud fitted with wing nut fixing
Poistive & Negative options available
MARINE APPLICATION
FLAT or ROUND PROFILE TWIN "Tinned" Copper cables from 1.5mm2 (#16 AWG) up to 2.5mm2 (#14 AWG )
ALT/BT6NEG-1-02
OFFSET CONNECTION NEGATIVE BATTERY TERMINAL
Simply lift up the insulating colour coded cap and pull the terminal off.
Positive & Negative battery terminals, suitable for crimping or attaching the cable via a 6mm eyelet type fastener.
Clearly marked with coloured polarity inserts.
Ideal for disconnecting the vehicles main battery cable feed to prevent battery discharge
ALT/BM1-01
Ideal for recharging Fork Lift trucks
Silver plated copper alloy contacts
300Amp rated @ 250 volts
50mm2 (#0 AWG) 345 Amp rated Automotive starter/battery cable.
Highly Flexible
Sold per mtr, or in full reels of 10m, 30m, 50m
Various colours available
Highly Flexible
