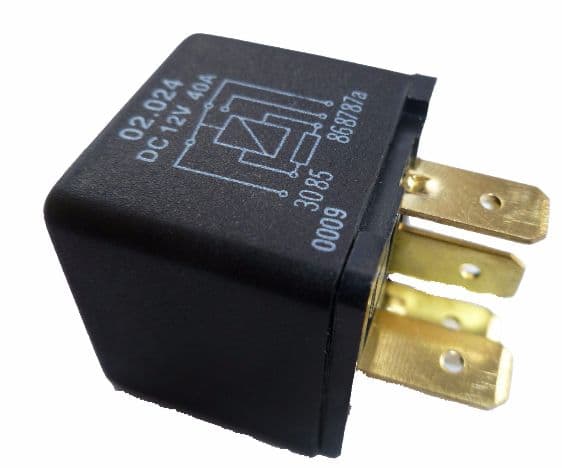

5 pin 12 volt relay
Available in two variants (with or without mounting bracket)
ALT/RY02024 :-no mounting bracket
ALT/RY02024B :- with moulded mounting bracket
S.P.C.O. (single pole change over)
30 / 40Amp relay.
15 Amp across 30 & 87A
40 Amp across 30 & 87
Circuit protection resistor fitted across pins 85 & 86
The unit is approx 26 mm square.
Connections are made by 5 x 6.35mm spade terminals
Available in two variants (with or without mounting bracket)
ALT/RY02024 :-no mounting bracket
ALT/RY02024B :- with moulded mounting bracket
S.P.C.O. (single pole change over)
30 / 40Amp relay.
15 Amp across 30 & 87A
40 Amp across 30 & 87
Circuit protection resistor fitted across pins 85 & 86
The unit is approx 26 mm square.
Connections are made by 5 x 6.35mm spade terminals
Mahle/Nagares equivalent relay here Click here
