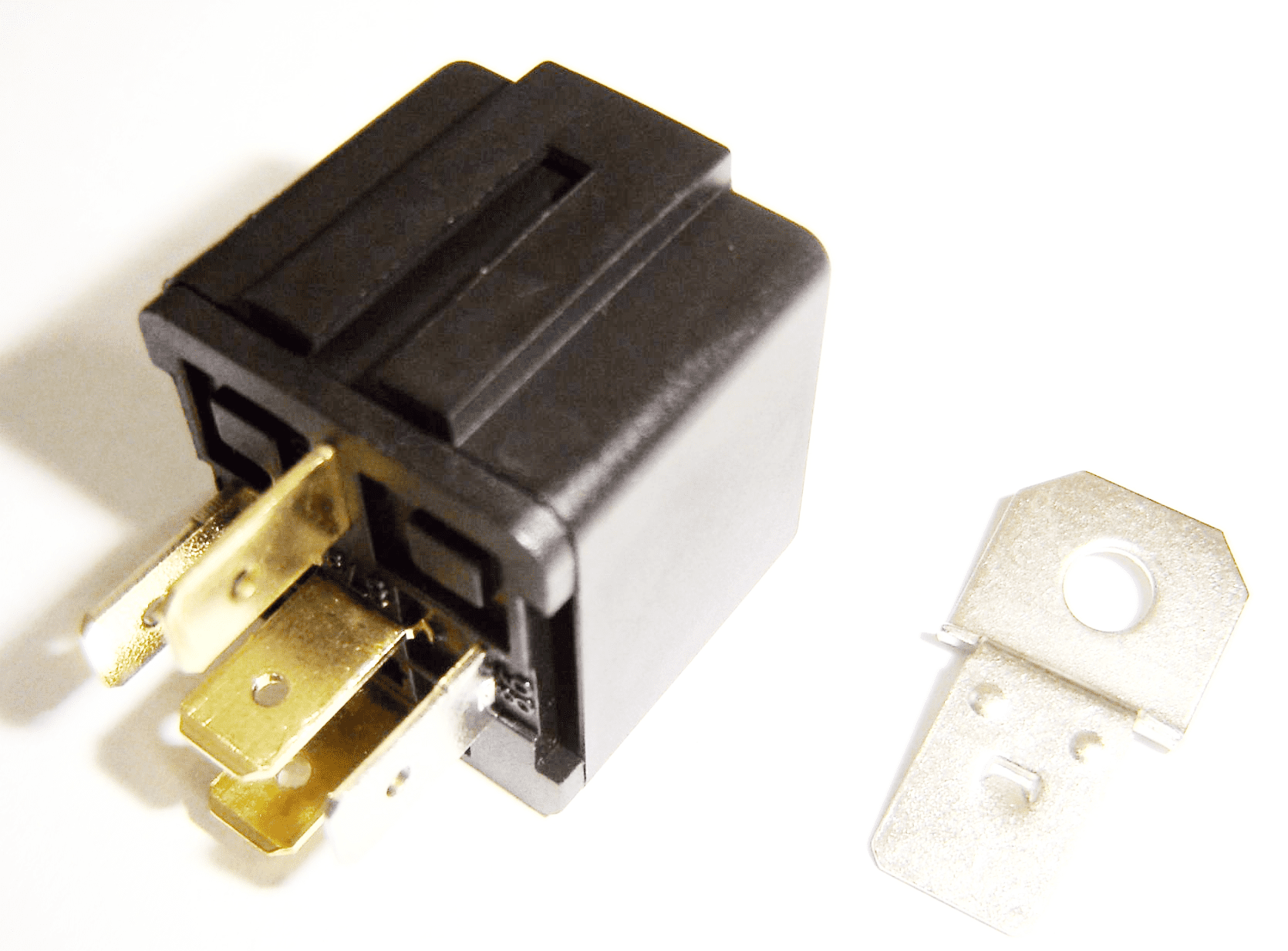

ALT/RY8-1-02
24 volt relay
5 pin changeover SPCO (Single pole changeover)
Current rating across contacts:-
30 - 87A 20Amp Continuous - 30A peak
30 - 87 30Amp Continuous - 40A peak
Standard size relay (approx 26mm square)
Supplied with mounting bracket
Connections by 6.3mm (1/4") spade terminals
5 pin changeover SPCO (Single pole changeover)
Current rating across contacts:-
30 - 87A 20Amp Continuous - 30A peak
30 - 87 30Amp Continuous - 40A peak
Standard size relay (approx 26mm square)
Supplied with mounting bracket
Connections by 6.3mm (1/4") spade terminals
Bulk packs available
