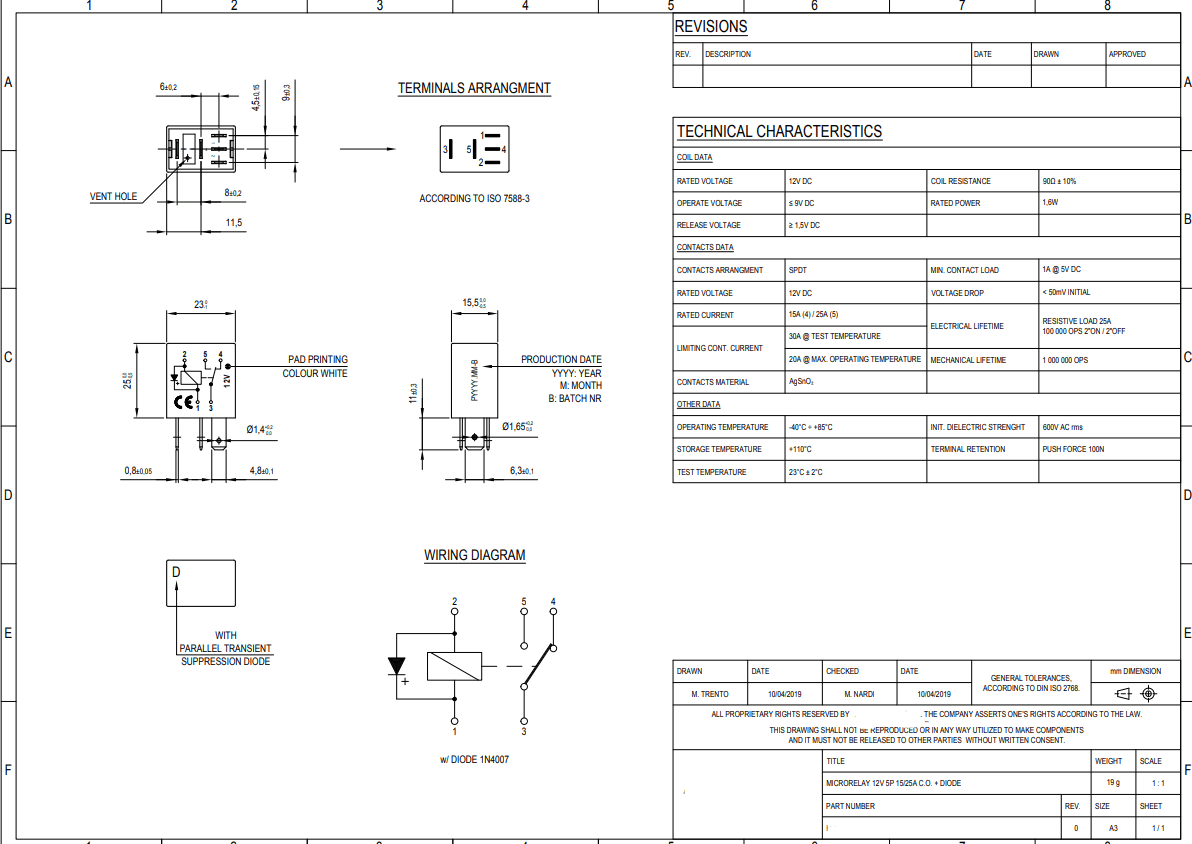

ALT/RY2845D-1-09
Top quality MICRO relay
Bulk deals available for 10, 100 & 200 pieces
SEE DROP DOWN MENU IN THE RED BOX
Diode Protected
Protection diode fitted internally across field windng pins 1 & 2 (85 & 86)
12 volt DC operation
25 Amp contacts
SPCO contact configuration (single pole changeover)
Contacts:- Common, Normally closed & Normally open.
Dimensions:- (body)
25mm (h) x 15mm (d) x 23mm (w)
Termination:-
3 x 4.8mm male lucar type.
2 x 6.3mm male lucar type.
Diode Protected
Protection diode fitted internally across field windng pins 1 & 2 (85 & 86)
12 volt DC operation
25 Amp contacts
SPCO contact configuration (single pole changeover)
Contacts:- Common, Normally closed & Normally open.
Dimensions:- (body)
25mm (h) x 15mm (d) x 23mm (w)
Termination:-
3 x 4.8mm male lucar type.
2 x 6.3mm male lucar type.
