ALT/VSR12-02-049-1-107

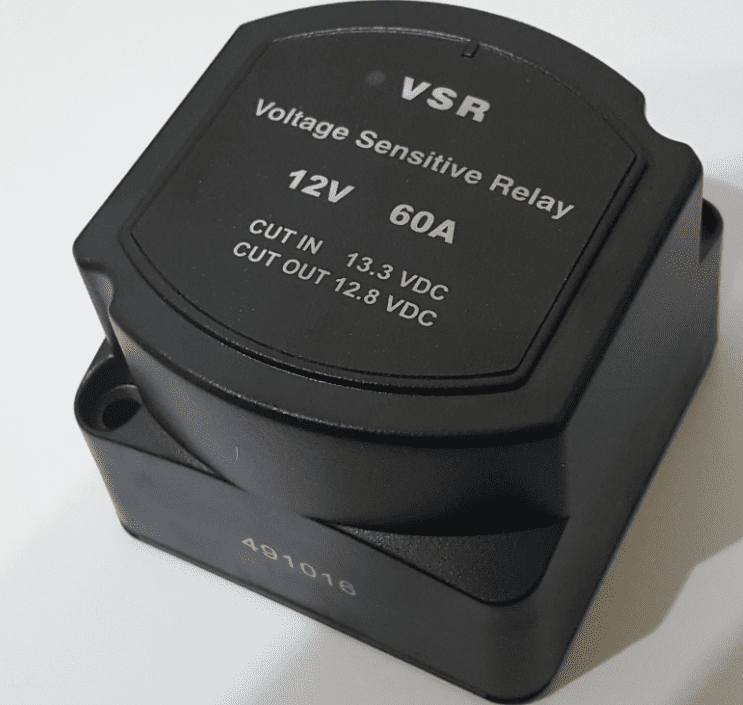

60Amp 12volt split charge (VSR) relay
VSR (voltage sensing relay)
Bi-Directional, zero loss Split Charging
Fully automatic operation
Connected LED indicator
Sealed for marine/under hood installation
Ignition Protected
Very simple to install, does not require a connection to vehicle alternator

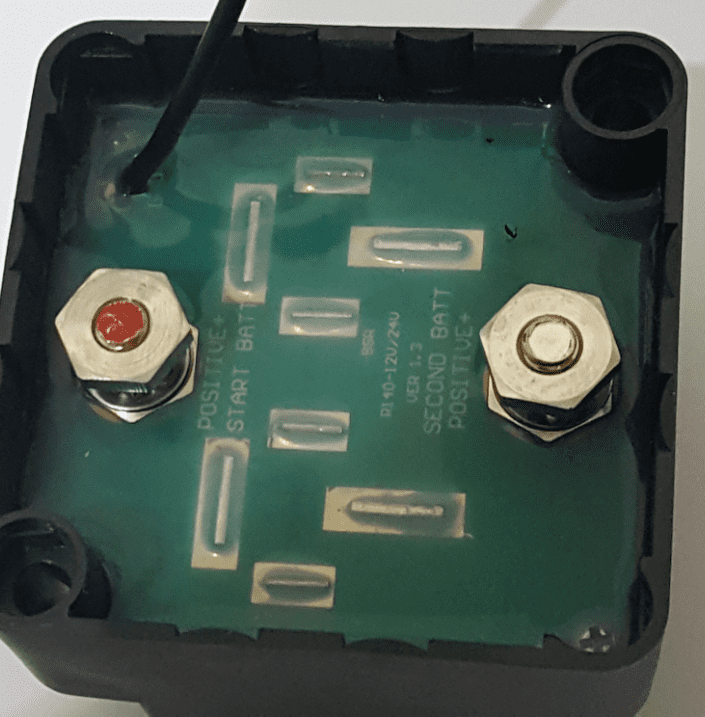

Fully epoxy sealed unit
Only 3 Connections to make
Power in, Power out & negative...that's it!
60Amp 12volt split charge (VSR) relay
VSR (voltage sensing relay)
Bi-Directional, zero loss Split Charging
Fully automatic operation
Connected LED indicator
Sealed for marine/under hood installation
Ignition Protected
Very simple to install, does not require a connection to vehicle alternator
Fully epoxy sealed unit
Only 3 Connections to make
Power in, Power out & negative...that's it!
The idea of a "voltage sensitive relay" (VSR) or "voltage controlled relay" (VCR) as they are sometimes known, is to simplify the installation, no connection is made to the vehicles alternator .

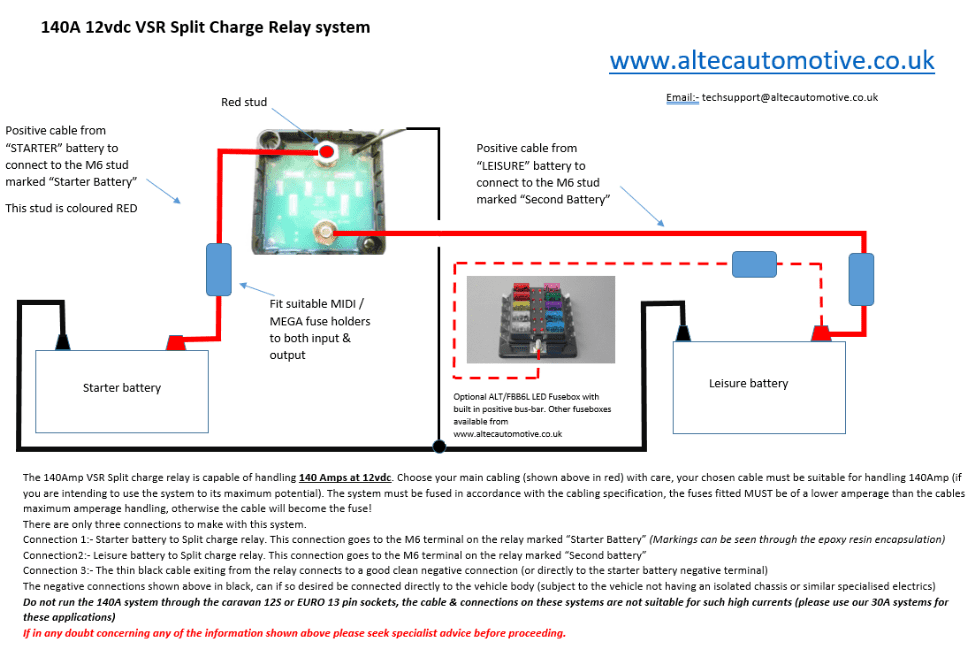

Simply connect this relay to the towing vehicles positive battery terminal (via a fuse!) and link to the leisure battery
The relay monitors the towing vehicles battery voltage and when it reaches 13.30vdc, the relay switches on and supplies charging current to the aux. circuits. When the engine is stopped and the voltage of the vehicles main battery drops below 12.80vdc the unit switches off.
Only 3 connections are required to the unit and as such it can be fitted in next to no time .
Supplied with detailed full colour instructions. (No cable is supplied with the unit unless the "kit" is purchased)

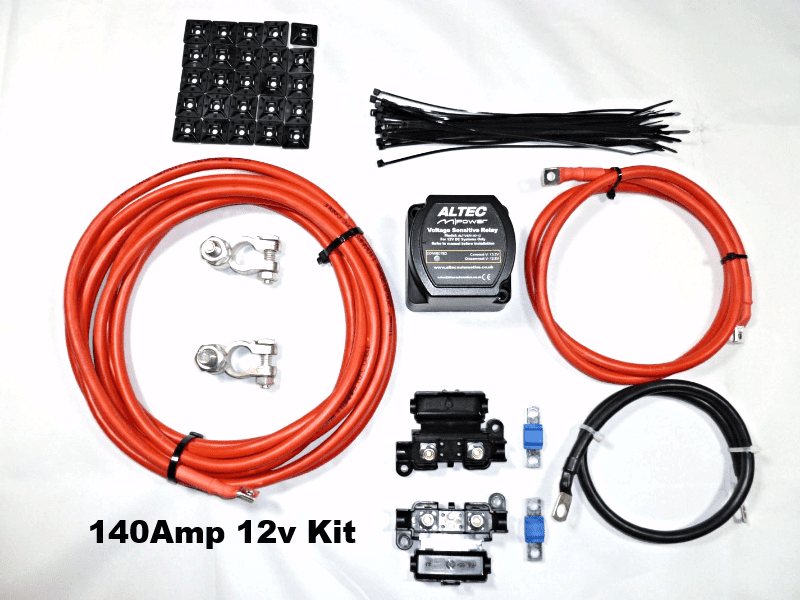

Also available as a ready assembled kit with a 6 + 1 metre pre-assembled heavy duty wiring harness complete with twin fuses.
The kit is manufactured using 2 x midi fuse holders & 16mm2 / #6 AWG heavy duty extra flexible battery cable.
The kit is manufactured using 2 x midi fuse holders & 16mm2 / #6 AWG heavy duty extra flexible battery cable.
Switch on voltage 13.30vdc
Switch off voltage 12.80vdc
Dimensions:-65 x 65 x 53mm
Relay connections:- 2 x 6mm studs for power in and out. 1 x 450mm cable for negative
