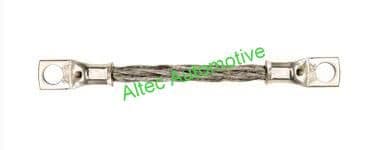

ALT/BS305L-1-01 BULK DISCOUNTS AVAILABLE We offer other sizes of this strap from stock 150, 225, 300 , 375, 450, 600, 760mm Other sizes can be made to order. Manufactured from 19mm2 braided cable. Fitted with two hex crimped 25-8 eyelet terminals. Conductor details: Diameter:- 7.2mm. Length:- 600mm. Current rating (Continuous) 130Amp Tech. spec for braid 16/16/0.30 Number of conductors = 256 Conductor thickness = 0.30mm Max. Voltage = 60 VDC MANUFACTURED TO BS6862 Part 1. 1971 |
!
