ALT / 0101470-FH380-1-61
MTA part ref 0101470 / 0301470

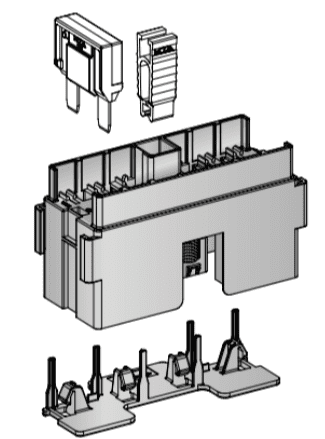

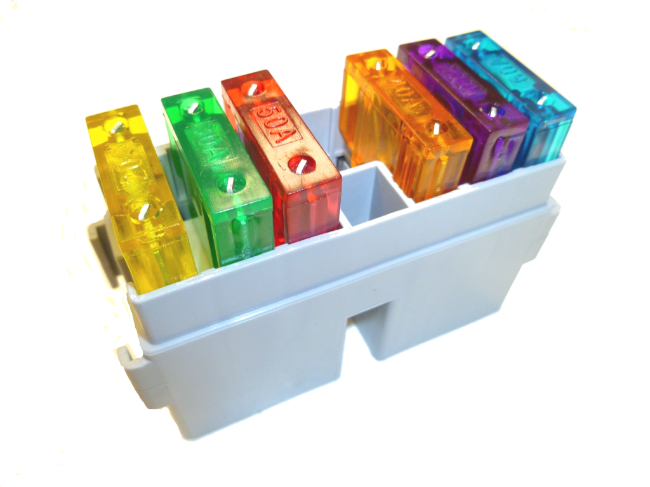

Maxi blade fuse box, accepts 6 maxi blade fuses. This fuse box can be mounted using any of our modular frames. Supplied complete with terminal locking bars, 6 terminals for crimping cables 4.0mm² to 6.0mm² and a common feed terminal
NB Fuses & the fuse extractor shown in the images are not supplied
Supplied complete with:-
6 x ALT/FH520T output terminals See link
1 x ALT/BSE25-8 input terminal See link
1 x M8 lock nut
Suitable mountings
For different output cable sizes other than the supplied terminals suitable for 4-6mm2 cables the range of terminals below can be ordered separately
ALT/FH510T-1107650-01 suits cables 1.50 - 2.50mm2 See Link
ALT/FH520T-1107660-01 suits cables 4.00- 6.00mm2 < Supplied
ALT/FH530T-1107670-01 suits cables 8.00-10.00mm2 See link
ALT/FH540T-1107671-01 suits cables 16mm2 See link
4 module frame, holds up to 4 individual modules
5 module frame, holds up to 5 individual modules
Cover for ALT-340-01, 4 module frame
Cover for ALT-FH345-01 5 module frame -
Mini blade fuse box, accepts 20 mini blade fuses
New BUSBAR type terminals now available
Accepts 1 mini relay (standard size relay 25 x 25 mm) and 1 x 4 pin high performance relay.
Accepts 10 x mini blade fuses & 1 x 4 pin high performance relay.
Accepts 2 mini relays 4 or 5 pin (standard size relay 25 x 25 mm).
Pair of MTA double module mounting brackets
Holds two individual MTA modules
ALT/0101484-(FH367)-61
Micro relay box accepts 6 micro relays
Replaces the FH370 , function exactly as per FH370 but slightly different terminals and locking arrangement
ALT/0101564
Mini blade fuse box & Micro relay box accepts 8 mini blade fuses & 4 micro relays
Supplied either as a housing wth locking bar or with full terminal kit & locking bar.
ALT/0101590-FH505-1EA-61
Single module cover
MTA part ref 0101590
Mini blade fuse box & Micro relay box accepts 6 mini blade fuses & 4 micro relays
Two module cover with built in position for (ALT-FBT-01) fuse extractor
