ALT/101564

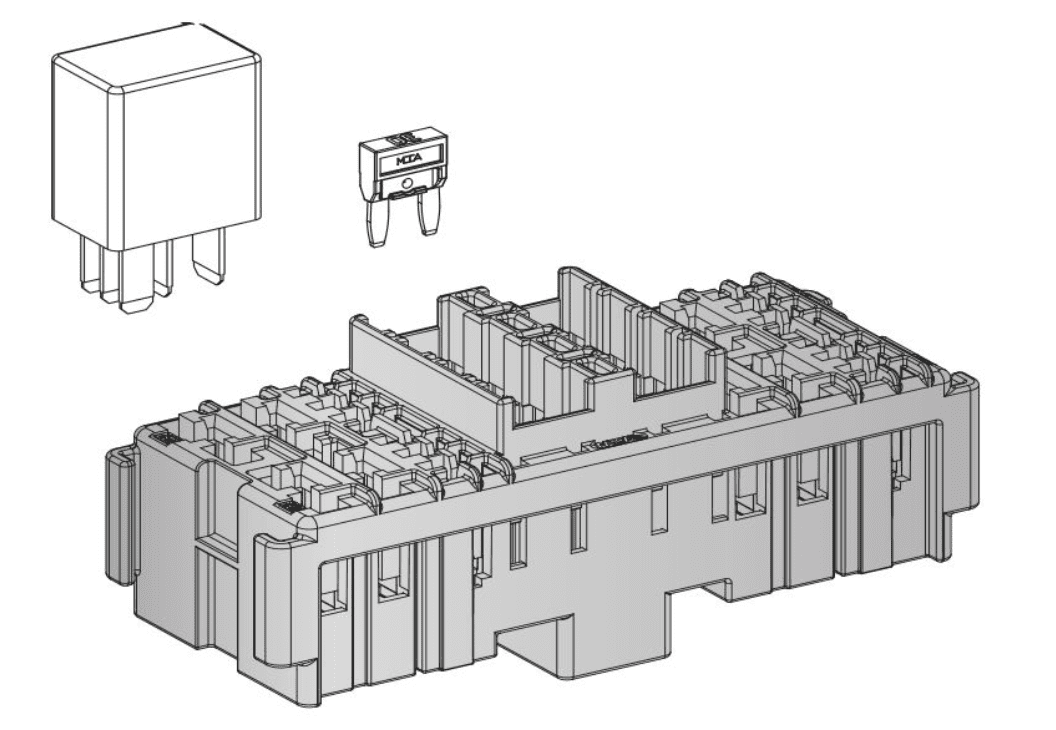

Mini blade fuse and micro relay box, accepts 8 mini blade fuses and 4 micro relays. This fuse / relay box can be mounted using any of our modular frames.

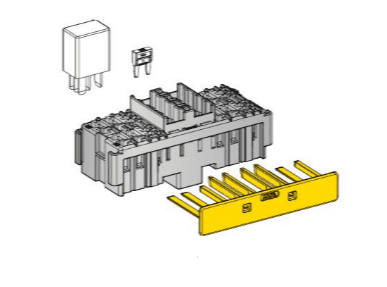

FH010564 is supplied complete with 36 terminals & locking bar.
8 x F630 T1108502 Micro relay field winding terminal Click here for 1108502
12 x F480 T1108401 Micro relay output contact terminal Click here for 1108401
16 x F280 T1108331 Fuse holder terminal (FH300T) Click here for 1108331

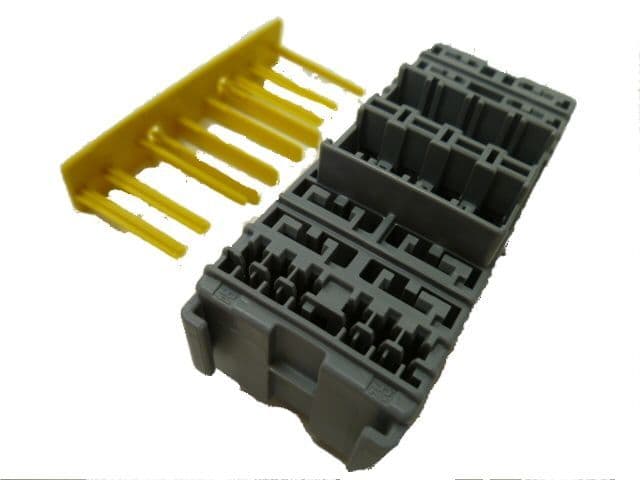

Also supplied as the housing and locking bar only (no terminals) Part Ref ALT/FH0101564-R
4 module frame, holds up to 4 individual modules
5 module frame, holds up to 5 individual modules
Cover for ALT-340-01, 4 module frame
Cover for ALT-FH345-01 5 module frame -
Mini blade fuse box, accepts 20 mini blade fuses
New BUSBAR type terminals now available
Accepts 1 mini relay (standard size relay 25 x 25 mm) and 1 x 4 pin high performance relay.
Accepts 6 X Maxi blade fuses. (Common feed rail).
Accepts 10 x mini blade fuses & 1 x 4 pin high performance relay.
Accepts 2 mini relays 4 or 5 pin (standard size relay 25 x 25 mm).
Pair of MTA double module mounting brackets
Holds two individual MTA modules
ALT/0101484-(FH367)-61
Micro relay box accepts 6 micro relays
Replaces the FH370 , function exactly as per FH370 but slightly different terminals and locking arrangement
ALT/0101590-FH505-1EA-61
Single module cover
MTA part ref 0101590
Mini blade fuse box & Micro relay box accepts 6 mini blade fuses & 4 micro relays
Two module cover with built in position for (ALT-FBT-01) fuse extractor
