ANDERSON SBE-320 connector housings are suitable for currents of 550Amps.

Please note:- Our Anderson SB-320 products are the genuine item not cheap imitations made from plastic!

Sturdy 550 amp max. battery connectors with polycarbonate housings, auxiliary contact port and two silver plated copper contacts. Used extensively in the fork-lift truck industry.

These connectors are identical halves (genderless not male and female). To connect together simply turn one half 180 degrees. The same colour connectors are required to make a mating pair, they are mechanically keyed to prevent cross connection.

2 pole power connector ( positive and negative) for connecting and disconnecting battery/welding cables quickly and safely.

High impact ABS.

Industry standard product

The supplied terminals can either be crimped or soldered to the cables.

Terminals available :-

35mm2 (#2AWG)

50mm2 (#1/0 AWG)

70mm2 (#2/0 AWG)

95mm2 (#3/0 AWG)

120mm2 (250 AWG)

150mm2 (#300 AWG)

 (mm2 = Cross sectional area of the cable)

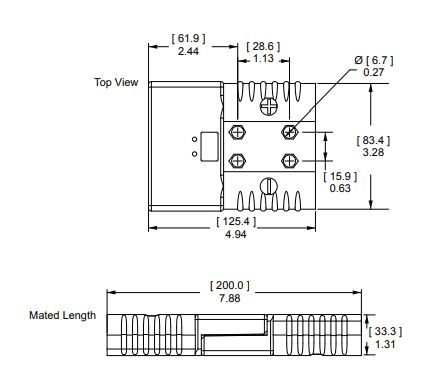

Each connector block measures:

93mm x 72 x 25mm

Full range of Anderson cable sleeves & end caps available.

PLEASE NOTE:- Select the required item from the RED BOX drop down menu, located just above the "Add to cart " button.

LINK TO ANDERSON POWER PRODUCTS click here

NB. Anderson connectors are not male and female, they are genderless. Each part of a mating pair is identical, you simply rotate one connector 180 degrees and it plugs into the other. A very clever piece of engineering design.

 Only same colours will connect together i,e grey to grey, red to red etc.
