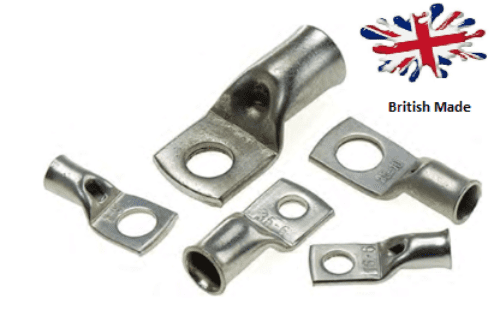

Range of top quality battery / starter ring / eyelet terminals.
UK Manufactured for quality and reliability
This extra small range covers cable sizes from 1.5mm2 (#18 AWG) - 4.00mm2 (#12 AWG)
Stud holes sizes from 4mm - 8mm
Please choose your requirements from the "RED BOX" Drop Down menu situated just above the "ADD TO CART" Tab.
ALT/BSE1.5-4 = cable size 1.5mm2 (#18 AWG) stud hole size 4mm
ALT/BSE1.5-5 = cable size 1.5mm2 (#18 AWG) stud hole size 5mm
ALT/BSE1.5-6 = cable size 1.5mm2 (#18 AWG) stud hole size 6mm
ALT/BSE2.5-4 = cable size 2.5mm2 (#14 AWG) stud hole size 4mm
ALT/BSE2.5-5 = cable size 2.5mm2 (#14 AWG) stud hole size 5mm
ALT/BSE2.5-6 = cable size 2.5mm2 (#14 AWG) stud hole size 6mm
ALT/BSE2.5-8 = cable size 2.5mm2 (#14 AWG) stud hole size 8mm
ALT/BSE4-4 = cable size 4.00mm2 (#12 AWG) stud hole size 4mm
ALT/BSE4-5 = cable size 4.00mm2 (#12 AWG) stud hole size 5mm
ALT/BSE4-6 = cable size 4.00mm2 (#12 AWG) stud hole size 6mm
ALT/BSE4-8 = cable size 4.00mm2 (#12 AWG) stud hole size 8mm
Bulk discounts available (100 pieces +)
Our range of larger eyelets is shown below:-
| Eyelet range | Stud sizes available. | Cable entry internal diameter | Suits cable sizes: mm2 = cross sectional area AWG = American Wire Gauge |
|
| i.e 6 -8 = 6mm2 cable to 8mm stud | mm2 | AWG | ||
| 1.5-? 2.5? 4-? 6-? |
4,5,6mm 4,6,8mm 4,5,6,8mm 4, 5, 6, 8mm |
1.90mm 2.4mm 3.00mm 4.0mm |
1.5mm2 2.5mm2 4mm2 6mm2 |
16AWG 14 AWG 12 AWG 10 AWG |
| 10-? | 5. 6. 8.10.12mm | 4.5mm | 8.5mm2 - 10mm2 | 8 AWG |
| 16-? | 5. 6 .8.10.12mm | 5.5mm | 16mm2 | 6 AWG |
| 25-? | 6 .8.10.12mm | 6.7mm | 25mm2 | 4 AWG |
| 35-? | 6. 8.10.12, 14mm | 8.6mm | 35mm2 - 40mm2 | 2 AWG |
| 50-? | 6. 8.10.12, 14 & 16mm | 9.6mm | 50mm2 - 60mm2 | 1-1/0 AWG |
| 70-? | 6. 8.10.12.14.16mm | 12.0mm | 70mm2 | 2/0 AWG |
| 95-? | 8.10.12.14.16mm | 13.5mm | 95mm2 | 3/0 AWG |
| 120-? | 8.10.12.14.16mm | 15.0mm | 120mm2 | 4/0 AWG |
| 150-? | 10.12.14.16mm | 16.5mm | 150mm2 | 300 AWG |
| 185-? | 10.12.14.16mm | 18.5mm | 185mm2 | 350 AWG |
| 240-? | 12.14.16mm | 21.0mm | 240mm2 | 500 AWG |
Copper tube construction with tin plated outer
Suits cable sizes from
6mm2 (#10 AWG) - 50mm2 (#1 AWG).
Stud holes sizes from 5mm - 16mm
Click image to select size required
Copper tube construction with tin plated outer
Our "LARGE" Range covers cable sizes from 70mm2 (#2/0 AWG) - 240mm2 (#500 AWG)
Stud holes sizes from 6mm - 16mm
Click image to select size required
Range of Copper tube terminal pins -6mm2 - 120mm2 (#16 AWG - #4/0AWG)
ALT/Rxx-P-2 Range
Range of Copper tube terminal pins -10mm2 - 70mm2 (#8 AWG - #2/0AWG)
ALT/TCBxx-33 Range
Copper tube construction with tin plated outer
Click image to select size required
An alternative to our ALT/TN72-09 where space is limited.
Range of sizes to suit 0.5mm2 - 70mm2 cabling
Click ON THE RED BOX to select size
Battery Starter Eyelets (copper tube terminals)
78 pieces in total
All popular sizes
A perfect crimp is assured as the ratchet will not release until the crimp is perfectl...
