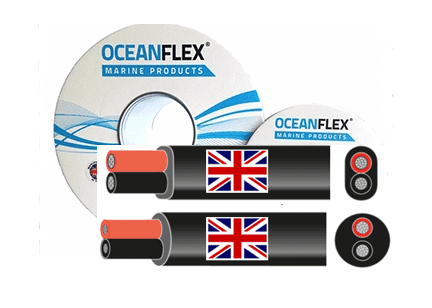

Ocean Flex® Single & Twin Core Cables are high temperature, thin wall & PVC low voltage wiring cables. Ocean Flex ® is designed for use in marine, automotive and harsh environments ,the core copper strands are tin plated, which makes the cable more resistant to corrosion.
TIP! If for example you require 3 metres, just order quantity 3, we will supply one continuous length of 3mtrs.
- 1.5mm2 - 10.00mm2 are manufactured in accordance with ISO 6722-1:2011 (class B) 105°C
- Suitable for 12v and 24v systems (maximum 60v).
- Tinned Copper Conductors – PVC Insulated.
- Suitable for use at temperatures from -40ºC to +105ºC with excursions up to +120ºC
- Reduced insulation gives considerable savings in weight and volume.
- Good resistance to petrol, diesel, lubricating oils and diluted acid.
- Excellent resistance to corrosion.
- Hard grade PVC insulation offers good resistance to abrasion and cut through.
- Cables are printed with the specification on the insulation.
- Technical data sheet available on request.
Sizes & Colours available :-
All sizes and colours can be ordered by the full reel, please ring for reel prices.
ALT/CM1.5 -1.5mm2 (#16 AWG) 21.00 Amp Black, Red ( Special order colours :- Green, Brown, Blue,Yellow.)
ALT/CM2.5 - 2.5mm2 (#14 AWG) 29.00 Amp Black, Red (Special order colours :- Green, Brown, Blue,Yellow.)
ALT/CM4 - 4.0mm2 (#12 AWG) 39.00 Amp Black, Red (Special order colours:- Green, Brown,Red, Yellow.)
ALT/CM6 - 6.0mm2 (#16 AWG) 50.00 Amp Black, Red (Special order colours:- Green, Red, Yellow.)
ALT/CM10 - 10.00mm2 (#8 AWG) 70.00 Amp Black, Red, Special order colour:- Yellow.)
ALT/CM16 - 16.00mm2 (#6 AWG) 110.00 Amp Black, Red
ALT/CM25 - 25.00mm2 (#4 AWG) 170.00 Amp Black, Red
ALT/CM35 - 35.00mm2 (#2 AWG) 240.00 Amp Black, Red
ALT/CM50 - 50.00mm2 (#0 AWG) 345.00 Amp Black, Red
ALT/CM70 - 70.00mm2 (#00 AWG) 485.00 Amp Black, Red
ALT/CM95 - 95.00mm2 (no direct comparable AWG but approx #3.5AWG ) 500.00 Amp Black, Red
ALT/CM02/05 - 2 x 1.5mm2 (2 x #16 AWG) Flat profile twin, 21.00 Amp Black outer (Red & Black inners)
ALT/CM02/07 - 2 x 2.5mm2 (2 x #14 AWG) Flat profile twin, 29.00 Amp Black outer ( Red & Black inners)
ALT/CM02/25 - 2 x 1.5mm2 (2 x #16 AWG) ROUND profile twin, 21.00 Amp Black outer (Red & Black inners)
ALT/CM02/26 - 2 x 2.5mm2 (2 x #14 AWG) ROUND profile twin, 29.00 Amp Black outer ( Red & Black inners)
All amperage ratings are " continuous" ratings. @ 12VDC Max voltage 80Vdc
Our full range of Tinned Cables is shown below:-
