DAS/SW-19-005-1EA-107

2500Amp  / 250Amp  Battery Isolator Switch

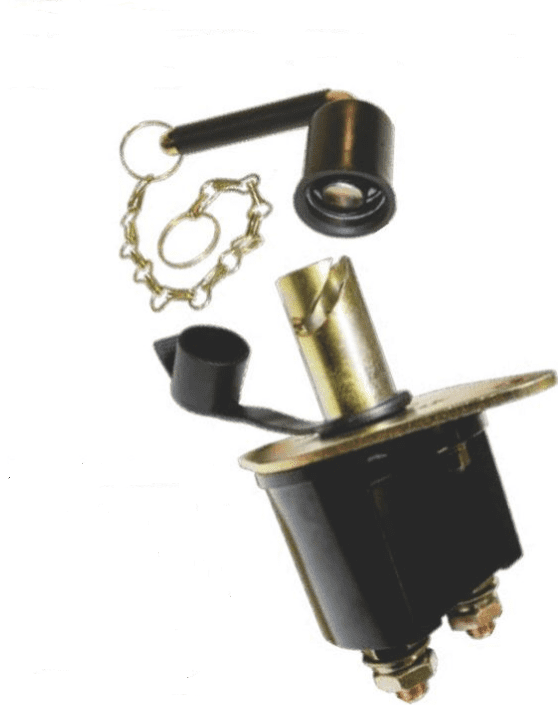

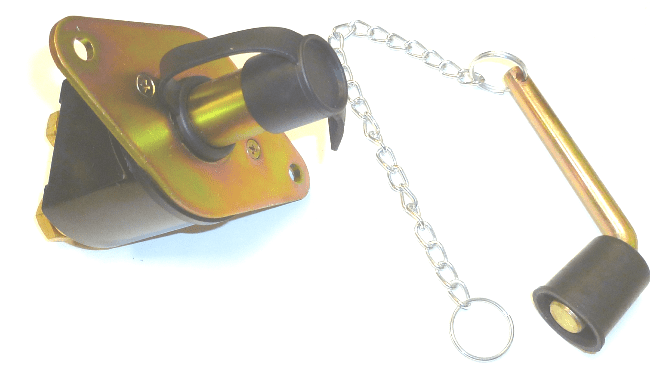

Battery isolator switch with removable key
(key removable in OFF position only)

Substantially built single pole battery isolator switch for commercial / racing use.
Key has an attached chain / lanyard to prevent loss.

The switch will carry 2500Amps @ 12vdc for 5 seconds or 250Amps continuously.

Comes complete with one key. (extra keys available)

Supplied with red rubber dust cap on switch body.

Supplied with black rubber dust cap on key shaft.

Connections are by two M10 studs.

Two fixing holes are provided in the switch body for panel fixing.

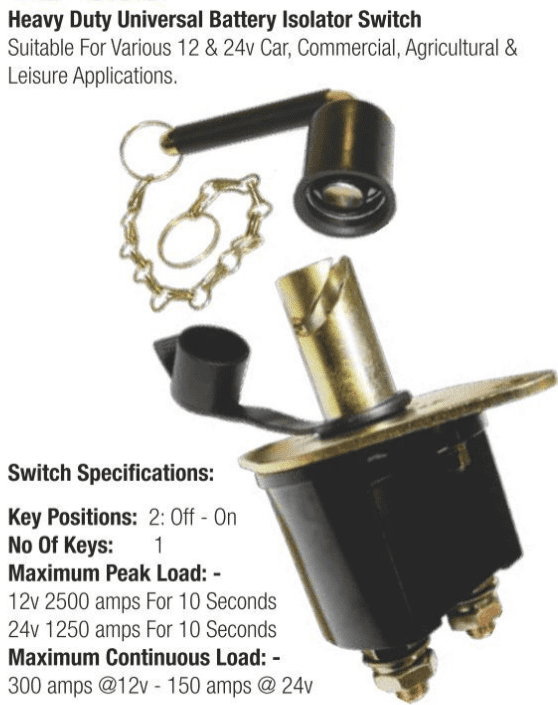

Specifications:

Weight: 546gms

Overall depth : 75mm

Width of switch (without mounting plate): 75mm

Width of mounting plate: 120mm

Key spigot protrusion (without key) : 43mm

Key spigot protrusion (with key fitted) : 95mm

Hole centres for mounting: 100mm

Cable attachment studs: M10 thread (15mm useable thread)

Mounting plate: Passivated steel 3mm thickness

Switch body: Phenolic moulding.
