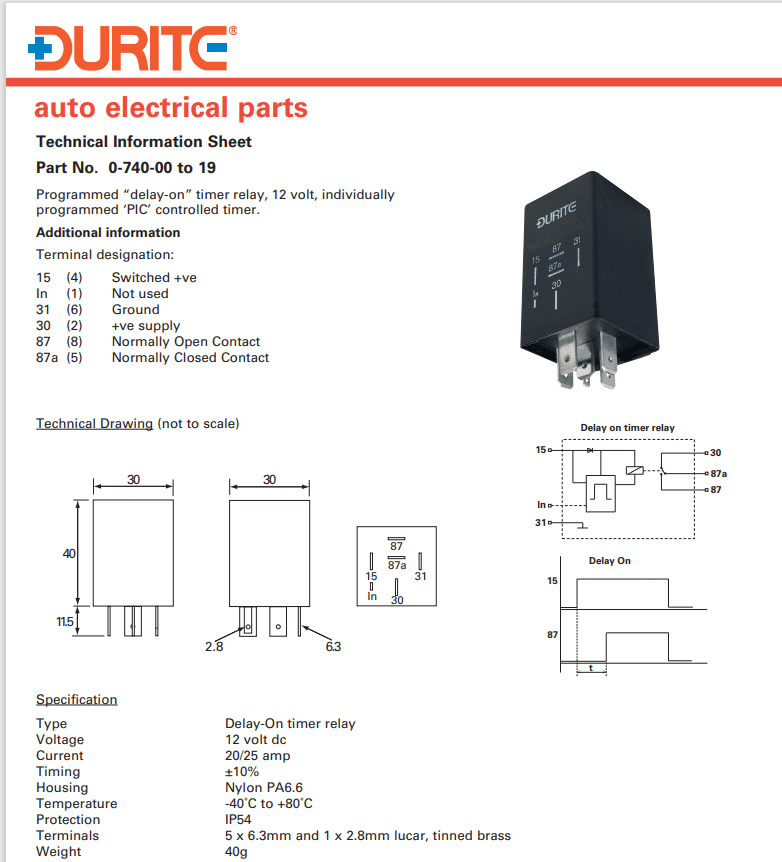

Delay On Timer Relay - 1 Minute 12V-0-740-18

Comprehensive range of fixed duration timer relays
Available in both 12v & 24v variants

12 volt units are rated at 20 Amp across the relay contacts
24 volt units are rated at 10 Amp across the relay contacts

All units have standard size 5 pin relay bases.

Suitable relay sockets are Durite numbers 0-729-00, 0-729-02 & 0-729-05

Supplied complete with mounting bracket

The relays have a change-over action between pins 30, 87 & 87a

Pins 30, 87 & 87a can be used to switch positive or negative circuits.

Timing function commences when a positive feed is applied to pin 15.
(Unlike our adjustable timer relay models, the feed to pin 15 does not have to be removed for the timing function to commence, once applied, the feed to pin 15 must remain live throughout, removing the feed will cause the relay to reset)
