ALT/RY2020-1-09

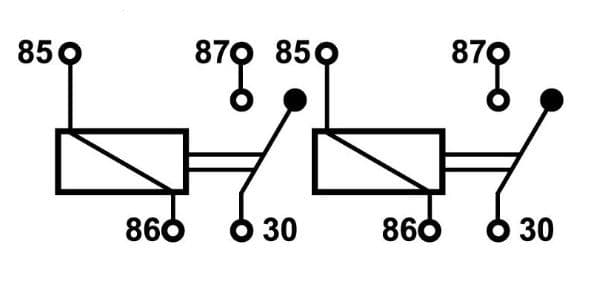

2 x 4 pin 12 Volt 30 Amp n/o Relays in one housing!
Connections made by 6.35mm spade terminals.
2 x 4 pin 12 Volt 30 Amp n/o Relays in one housing!
Connections made by 6.35mm spade terminals.
Specifications
Current draw 0.139A per field coil
Current handling per relay 30Amps @ 12vdc
Measurements:
Length 53.50mm
Width 28.00mm
Height 27.00mm (excl. mounting bracket & terminals)
Height 41.45mm (incl. mounting bracket but excl. terminals)
Width 28.00mm
Height 27.00mm (excl. mounting bracket & terminals)
Height 41.45mm (incl. mounting bracket but excl. terminals)
Height 53.00mm ( (incl. mounting bracket & incl. terminals)
Please note:- This dual relay will not fit into a relay holder, it must be connected using individual terminals (ALT/T10, ALT/T12, ALT/T92 etc) or a flying socket such as our ALT/RELH007B
Please note:- This dual relay will not fit into a relay holder, it must be connected using individual terminals (ALT/T10, ALT/T12, ALT/T92 etc) or a flying socket such as our ALT/RELH007B
