0-740-01 074001

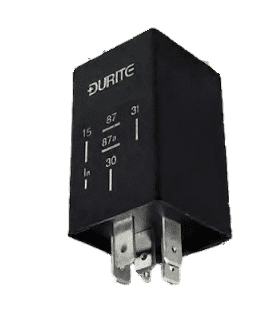

A comprehensive range of DURITE fixed duration timer relays
Available in both 12v & 24v variants
12 volt units are rated at 20/25 Amp across the relay contacts
24 volt units are rated at 10/15 Amp across the relay contacts
Voltage Parameters:- 12v unit (9v - 16v) 24 volt unit (18v -32v)
As these units have a 6 pin configuration base, they will not fit into a relay base, individual connections are required.
The relays have a change over action between pins 30, 87 & 87a
Dimensions:- 30mm x 30mm x 40mm (H)
Timimg functions can be found on the attached data sheet (See images)
(Please click on image and then hover mouse image over to auto-zoom in)
Timing functions available:-
(Please see the image showing the exact timings available)
Delay ON :- 0.1 - 1200 seconds
Delay OFF :- 0.2 -14400 seconds
Pulse:- 0.2 -3600 seconds
Flip-Flop:- 0.6 - 2700 seconds.
Please note that as these units are programmed to the clients specification by Durite prior to shipping, we are unable to hold stock, as such delivery is usually 3-4 working days.
After placing your order, please contact us with your specific requirements.
Available in both 12v & 24v variants
12 volt units are rated at 20/25 Amp across the relay contacts
24 volt units are rated at 10/15 Amp across the relay contacts
Voltage Parameters:- 12v unit (9v - 16v) 24 volt unit (18v -32v)
As these units have a 6 pin configuration base, they will not fit into a relay base, individual connections are required.
The relays have a change over action between pins 30, 87 & 87a
Dimensions:- 30mm x 30mm x 40mm (H)
Timimg functions can be found on the attached data sheet (See images)
(Please click on image and then hover mouse image over to auto-zoom in)
Timing functions available:-
(Please see the image showing the exact timings available)
Delay ON :- 0.1 - 1200 seconds
Delay OFF :- 0.2 -14400 seconds
Pulse:- 0.2 -3600 seconds
Flip-Flop:- 0.6 - 2700 seconds.
Please note that as these units are programmed to the clients specification by Durite prior to shipping, we are unable to hold stock, as such delivery is usually 3-4 working days.
After placing your order, please contact us with your specific requirements.
