ALT/SW-19B5-910-1EA-81-RK3SH4

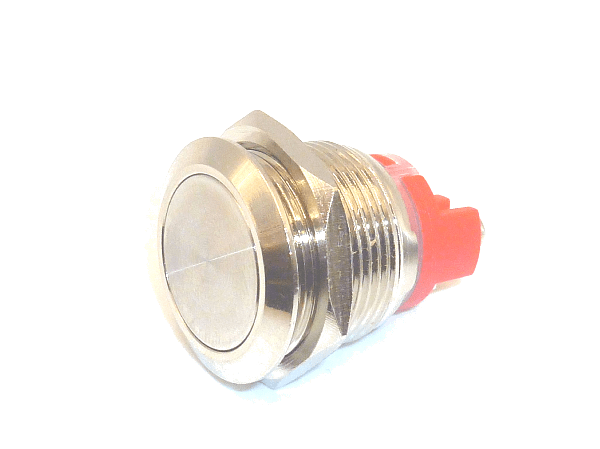

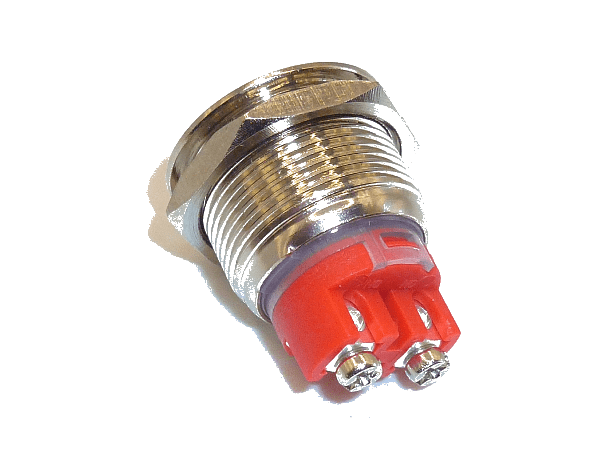

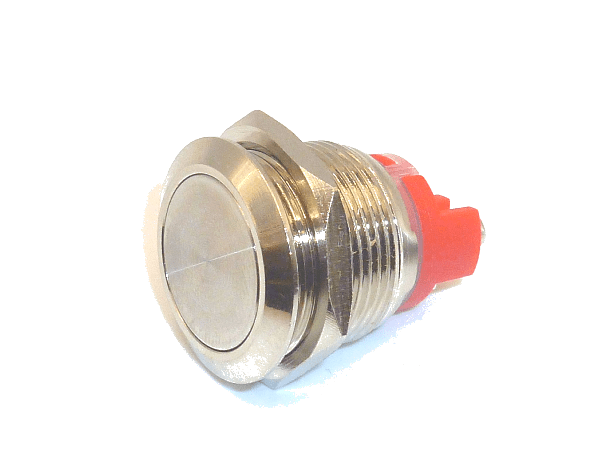

22mm Vandal Proof Push Button / IP65 / NO / SPST / Momentary / (On) - Off / 19mm Panel Cut Out / Stainless Steel / Flat Head Button / Rating - 10A 12VDC / RoHS /
Bezel Dimension : 22mm
Panel Cut Out : 19.0mm
IP Rating : IP65, shipped with panel sealing washer
Circuit : NO (Normally Open), Single Pole Single Throw (SPST), Momentary (On) - Off
Material : Stainless Steel
Rating : 10A 12VDC
Connection : Screw Wire Terminals
Mechanical Life : 1,000,000 Operations
Operating Pressure : About 4N
Actuator Travel : About 1.5mm
Operating Temperature : -20ºC to +55ºC
A 12 volt 50 Amp engine start push button switch with RED illuminated button
DAS/SW-A2-23B-RD-1-25
BULK DISCOUNTS AVAILABLE
A 12 volt 50 Amp engine start push button switch with BLUE illuminated button
DAS/SW-A2-23B-BU-1-25
BULK DISCOUNTS AVAILABLE
Part Number:ALT/SW-R13-527D2BA12-1EA-25
Will replace the now discontinued Durite 0-690-60 for 12v use
Part Number: 0-690-60-1-25 Now Discontinued by Durite
See also ALT/SW-R13-527D2BA for the 12v variant of this switch
Part Number: 0-605-41
Part Number: 0-484-50
PLEASE RING BEFORE ORDERING WE HAVE EXTREMELY LOW STOCKS CURRENTLY
As as fitted to BSA Bantam, AMC lightweights, and most C15,B40,B44 models with the C15C type frames
(1962-67).
