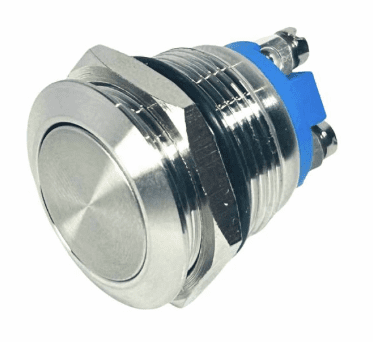

ALT/SW-GQ19F-10S-1-25
22mm Vandal Proof Push Button / IP65 / NO / SPST / Momentary / (On) - Off / 19mm Panel Cut Out / Stainless Steel / Flat Head Button / Rating - 2A 36VDC / 6A 12VDC Screw Wire Terminals / RoHS /
Bezel Dimension : 22mm
Panel Cut Out : 19.0mm
IP Rating : IP65, shipped with panel sealing washer
Circuit : NO (Normally Open), Single Pole Single Throw (SPST), Momentary (On) - Off
Material : Stainless Steel
Rating : 2A 36VDC
Connection : Screw Wire Terminals
Mechanical Life : 1,000,000 Operations
Operating Pressure : About 4N
Actuator Travel : About 1.5mm
Operating Temperature : -20ºC to +55ºC
ALT/SW-A2-23B-RD-1-25
ALT/SW-A2-23B-BU-1-25
Part Number: 0-690-60-1-25 Now Discontinued by Durite
See also ALT/SW-R13-527D2BA for the 12v variant of this switch
ALT/SW-19B5-910-1EA-81-RK3SH4
Metal Momentary On Push Switch - 10A at 12V
Part Number: 0-484-50
PLEASE RING BEFORE ORDERING WE HAVE EXTREMELY LOW STOCKS CURRENTLY
As as fitted to BSA Bantam, AMC lightweights, and most C15,B40,B44 models with the C15C type frames
(1962-67).
