ALT/MFB1RCB-1EA-09

Trade Version Of The ALT/FH260158 Ideal For Fleet Users Or Resellers

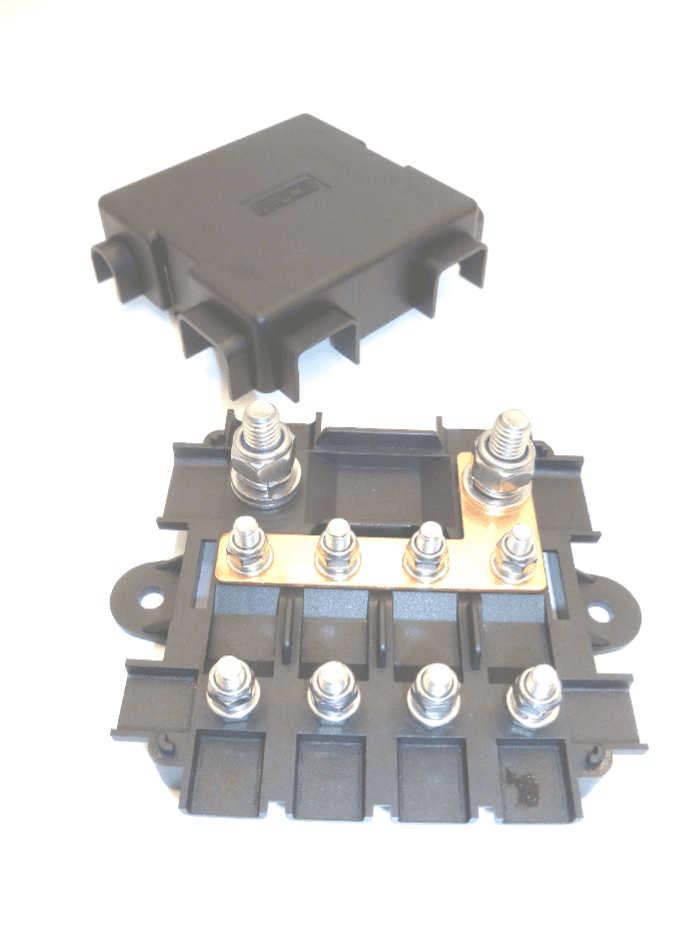

Automotive - Marine MEGA-MIDI fuse distribution box

Available pack quantities 1, 10, 50 & 100 pieces

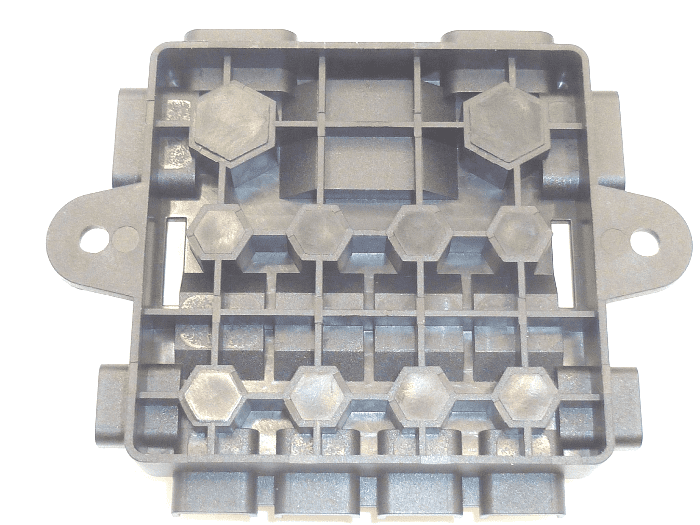

Extremely similar to our Professional Model ALT/MFB1-1EA-09 but this particular model has a fully insulated & contoured rear panel

ALT/MFB1-1EA-09  for the open back variant  Click here for the ALT/MFB1-1EA-09

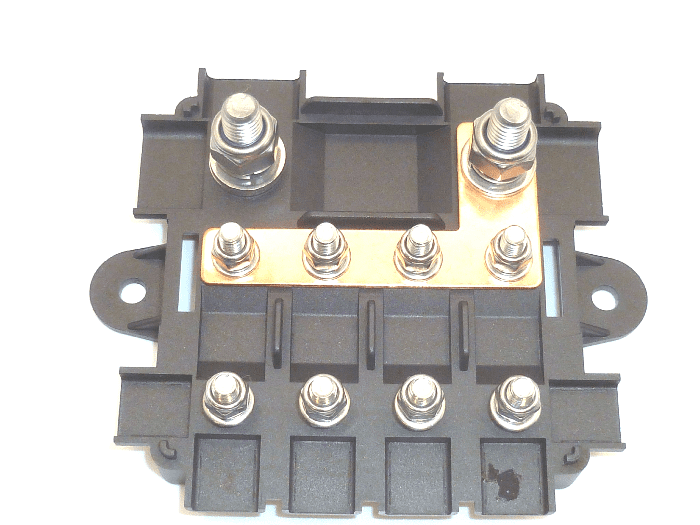

Fittings are 2 x M8 studs & 4 x M5 studs with attached nuts.

Designed to accept a 1 x MEGA fuse which can then be fed into up 4 x MIDI fuses thereby creating a high power distribution unit within a compact unit.



Dimensions : - see diagrams

Maximum total load 300Amps.

The unit has a provision for being bolted down.
Ideal for battery charging systems, large amplifier systems, marine use, etc.


Specification

• Box material: Black, 30% glass-filled nylon 66
• Connection post sizes: 2 x M8, 8 x M5
• Mounting hole dia: 5.5mm
• Mounting hole pitch: 98mm
