ALT/FH260158-1EA-54

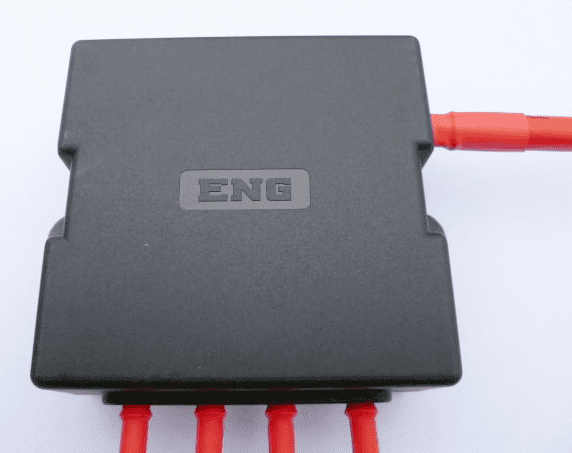

Professional quality automotive MEGA-MIDI fuse distribution box

Available pack quantities 1, 10, 50 & 100 pieces

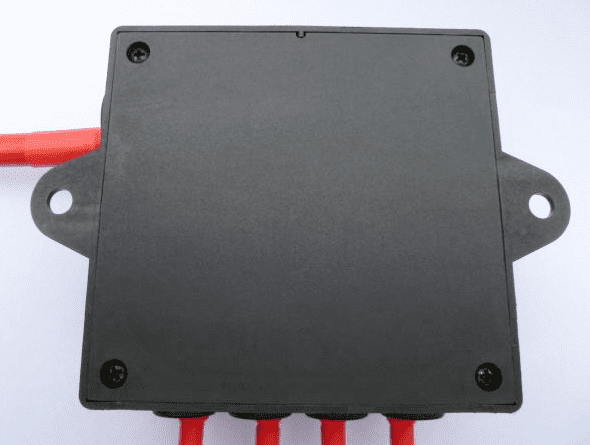

(Extremely similar to our ALT/MFB1-09 but this model has a smooth fully enclosed back panel)

Closed back model, see ALT/MFB1 for the open back variant

See also the following similar items:-

ALT/MFB1RCB   ALT/MFB1RCB-1EA-09

ALT/MFB1   ALT/MFB1-1EA-09

Fittings are 2 x M8 studs & 4 x M5 studs with attached nuts.

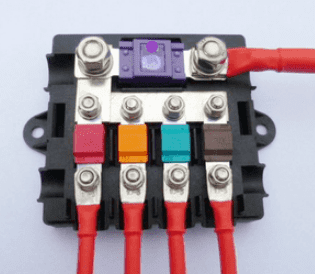

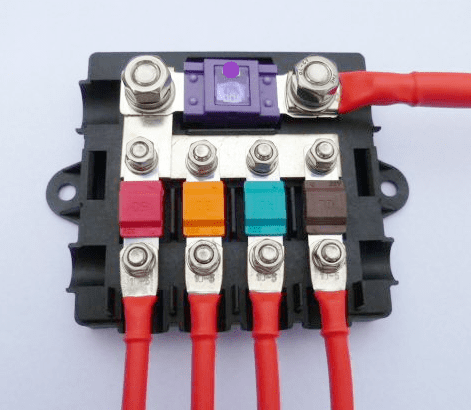

Designed to accept a 1 x MEGA fuse which can then be fed into up 4 x MIDI fuses thereby creating a high power distribution unit within a compact unit.

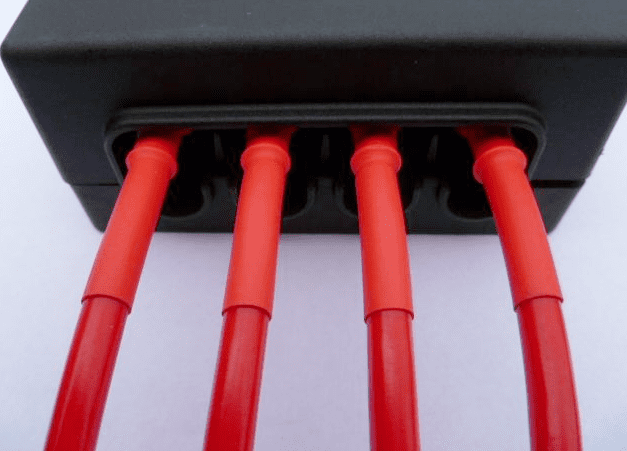

NB fuses & cabling pictured are not supplied with the product

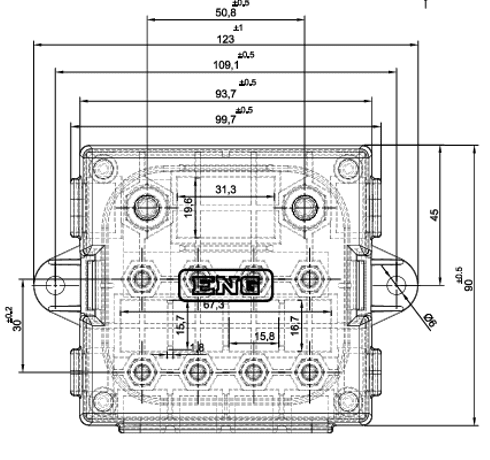

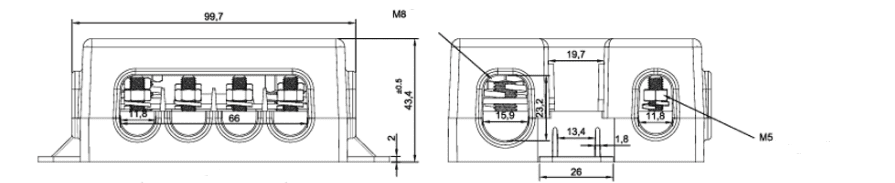

Dimensions : - see diagrams

Maximum total load 300Amps.

The unit has a provision for being bolted down.
Ideal for battery charging systems, large amplifier systems, marine use, etc.


Specification

• Box material: Black, 30% glass-filled nylon 66
• Connection post sizes: 2 x M8, 8 x M5
• Mounting hole dia: 5.5mm
• Mounting hole pitch: 98mm
