ALT/MFB1-1EA-ORIG-53

BULK DEALS AVAILABLE please see the drop down menu in thee REDBOX

Professional Quality

The original and the best , European made to extremeley high qualilty standards

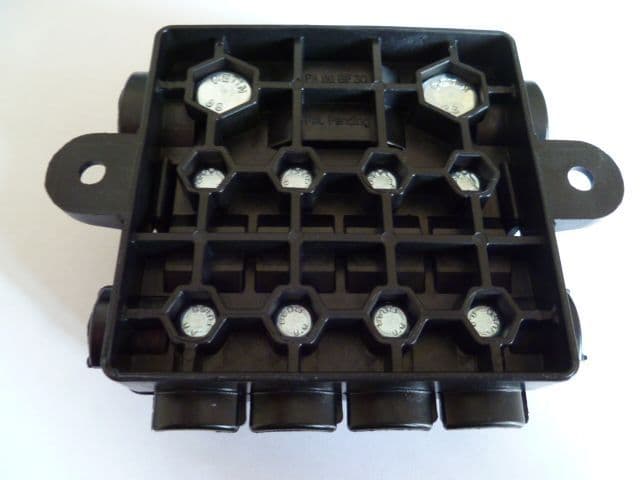

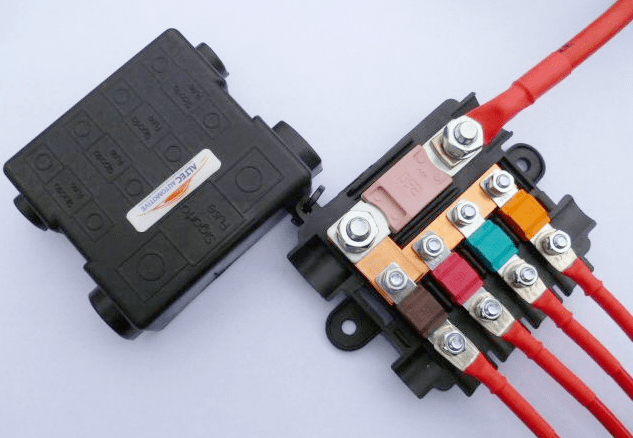

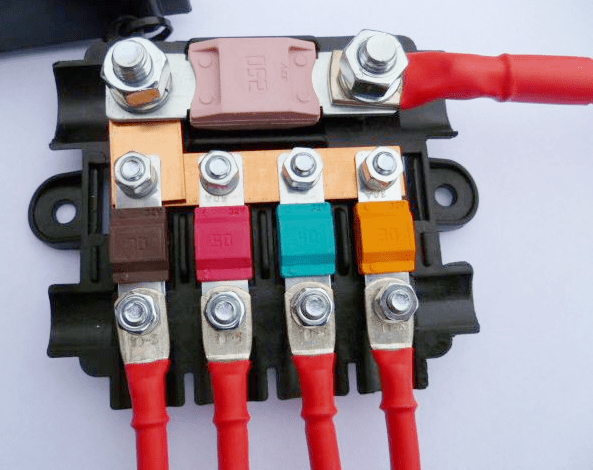

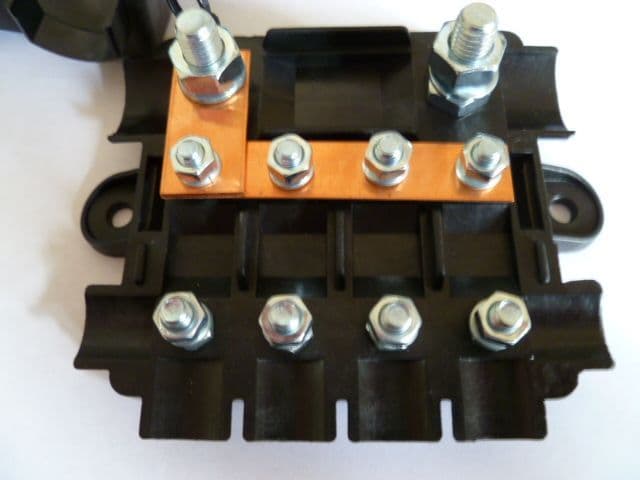

Automotive / Marine MEGA-MIDI fuse distribution box

Fittings are 2 x M8 studs & 4 x M5 studs with attached nuts.

Designed to accept a 1 x MEGA fuse which can then be fed into up 4 x MIDI fuses thereby creating a high power distribution unit within a compact unit.

NB fuses pictured are not supplied with the product

Dimensions : - L116 x W94 x H38.9mm

Maximum total load 300Amps.

The unit has a provision for being bolted down.

See below for units with a fully insulated rear panel

ALT/ FH260158 Click Here for ALT/FH260158-1-01

&

ALT/MFB1RCB-1-09  Click Here for ALT/MFB1RCB-1-09

Ideal for battery charging systems, large amplifier systems, marine use, etc.


BULK DEALS AVAILABLE please see the drop down menu in thee REDBOX


• Box material: Black, 30% glass-filled nylon 66
• Connection post sizes: 2 x M8, 8 x M5
• Mounting hole dia: 5.5mm
• Mounting hole pitch: 98mm
