12 volt 30Amp, 24 volt 20Amp or 24 volt 40Amp split charge relay systems
NEW!! Now with fully splashproof fuse holders!
Easy installation
This unit is triggered by the action of the vehicles alternator outputting a charge voltage. This then connects the aux. battery automatically to the leisure battery or fridge circuit.
When the vehicles engine is stopped the split charger automatically disconnects the aux. leisure battery /fridge from the system to prevent discharge.
The kit comes fully assembled with all required cables.
All connections are treated with CONTRALUBE to resist corrosion.
Loom measurements:-
Red 4.00mm2 (#12 AWG) cable. - Split charge relay to leisure battery 6.1mtrs
Red 4.00mm2 (#12 AWG) cable. - Vehicle battery to split charge relay 0.25mtrs
Brown 1.00mm2 (#17 AWG) cable. - Split charge relay to negative 0.4mtrs
Green 1.00mm2 (#17 AWG) cable. - Split charge relay to alternator/ignition 6mtrs

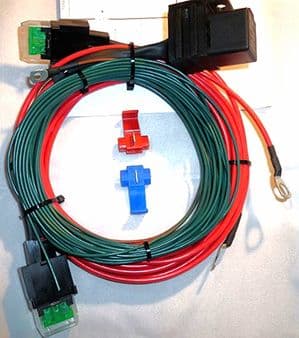

Kit comprises:
12v 30A, 24v 20A or 24v 40A split charge relay.
Fully assembled & fused wiring harness.
All fuses, holders and terminals
1 x Instruction sheet
