ALT/CCB376MON14-1-09
Negative - Black body colour

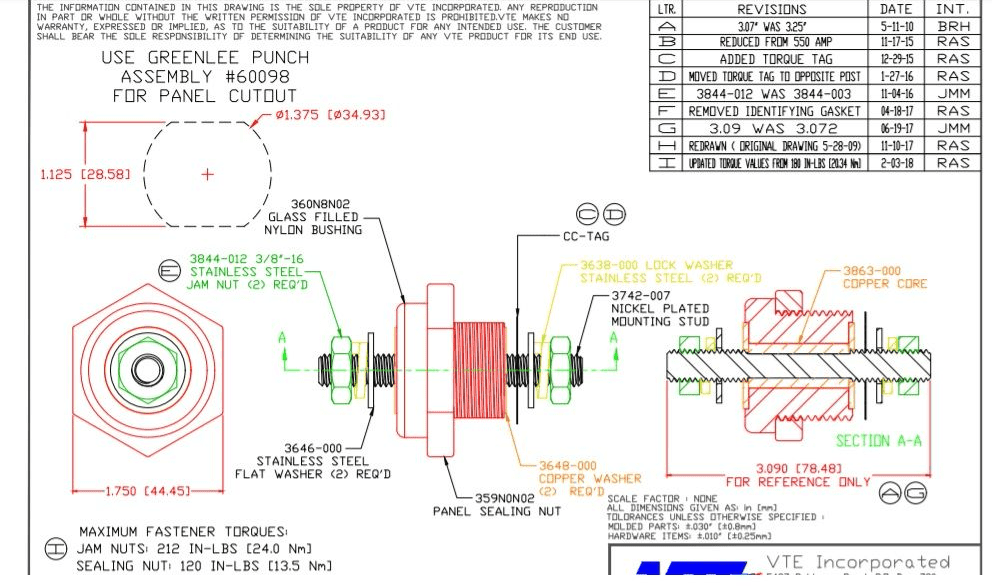

COPPER CORE POWER BUSHINGS
An innovative and unique solution for passing current through a panel or bulkhead.
Easy to assemble and install for panel thickness up to 3/8" (9.5mm).
440 Amp continuous rating 550 Amp peak rating
Stud size 9mm
Also available in RED :- click here
Material: Glass-filled nylon bushing, nickel plated steel stud.
Individually packed.
25mm2 Battery cable
Sold by the metre or multiples of
Reel sizes available 10, 30, 100mtrs
"Tinned" also available for marine use
Power Distribution Post NEGATIVE - 5mm SINGLE POINT ALT/77010N14-09
Accepts (5mm) eyelets
Power Distribution Post POSITIVE - 5mm SINGLE POINT ALT/77010N02-09
Accepts 5mm eyelets
Copper tube construction with tin plated outer
Our "LARGE" Range covers cable sizes from 70mm2 (#2/0 AWG) - 240mm2 (#500 AWG)
Stud holes sizes from 6mm - 16mm
Click image to select size required
Power Distribution Post POSITIVE - 6mm SINGLE POINT ALT/77025N02-1-09
Accepts 6mm eyelets
Accepts 1 x MEGA fuse & 4 X MIDI fuses
Professional quality automotive MEGA - MIDI Distribution unit.
Accepts 1 x MEGA fuse & 4 X MIDI fuses
BULK DEALS AVAILABLE please see the drop down menu in thee REDBOX
ALT/77131N02-01
Power Distribution Post 160 Amp POSITIVE - 8mm STUD SINGLE POINT ALT/77131N02-01
Accepts 8mm eyelets
ALT/77131N14-01
Power Distribution Post 160 Amp negative - 8mm STUD SINGLE POINT ALT/77131N14-01
Accepts 8mm eyelets
Power Distribution Post 240 Amp NEGATIVE - 10mm STUD SINGLE POINT ALT/77137N14-01
Accepts 10mm eyelets
ALT/479A9P00
INSULATOR FOR HIGH CURRENT MULTI-OUTLET DISTRIBUTION POST
Power Distribution Post 160 Amp POSITIVE - 10mm STUD 1 + 8 POINT ALT/77831N02-01
BULK PRICES AVAILABLE for packs of 10 , 50 or 100
UK Manufactured
35mm2 CSA (Cross sectional area)
(#2.0 AWG)
451/0.30 strands
PVC INSULATED 240.00 AMP CABLE.
Available in RED or BLACK
Tinned cable for MARINE use available
Perfect for connecting jump leads when your battery is hidden away.
ALT/CCJB376FMKM-1-09
550 Amp peak rating
Ideal for disconnecting the vehicles main battery cable feed to prevent battery discharge
ALT/BM1-01
40mm2 CSA (Cross sectional area)
(#1.5 AWG)
539/0.30 strands
PVC INSULATED 300.00 AMP CABLE.
Available in RED or BLACK
Also available as Tinned cable for MARINE use available in 16mm2, 25mm2, 35mm2, 50mm2, 70mm2 & 95mm2 sizes
