THROUGH-PANEL (FEED THROUGH)POWER BUSHINGS

An innovative and unique solution for passing current through a panel or bulkhead.
550 Amp peak rating
Select your option from the RED BOX:
POWER BUSHINGS
£15.29 excluding VAT

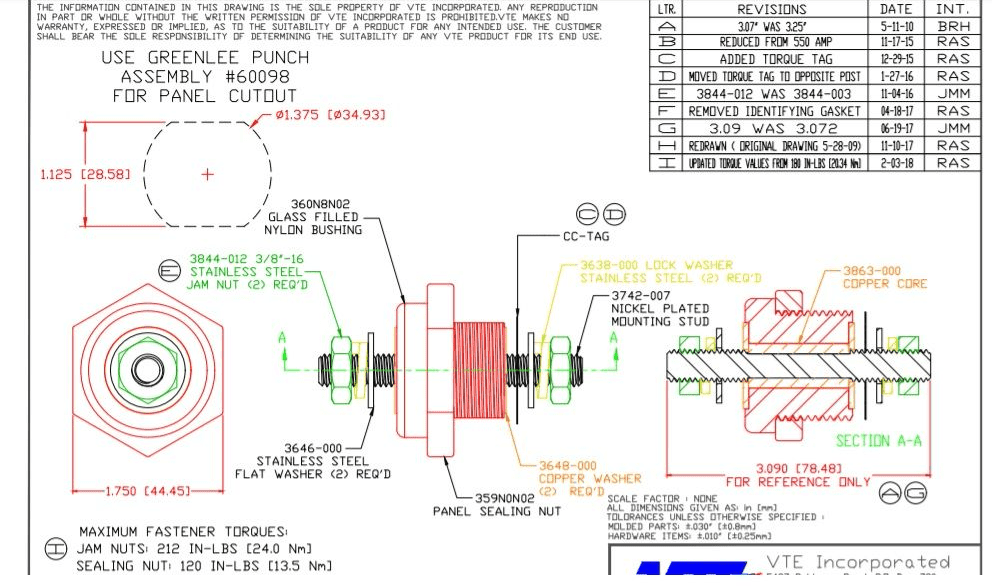

COPPER CORE POWER BUSHINGS

An innovative and unique solution for passing current through a panel or bulkhead.

Easy to assemble and install for panel thickness up to 3/8" (9.5mm).

440 Amp continuous rating 550 Amp peak rating

Stud size 9mm

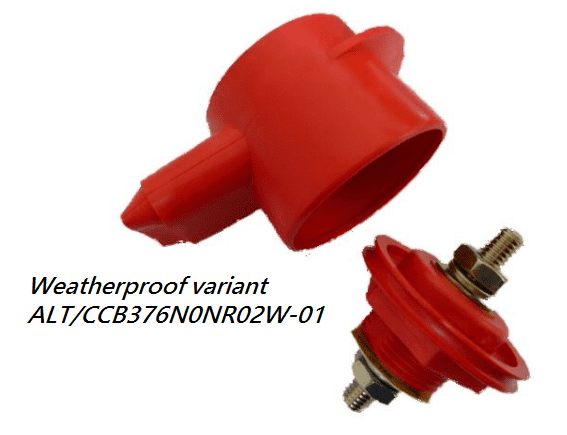

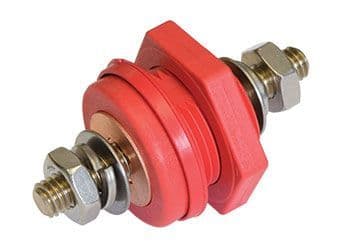

Weatherproof option available  ( includes panel, seal and insulator)

Material: Glass-filled nylon bushing, nickel plated steel stud.

Individually packed.
