TWINFLEX 50mm2 / #0 AWG Battery Cable
345 Amp rated

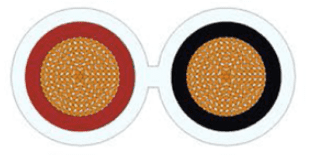

Two cables bonded together in a "figure 8" configuration > "OO"
Sometimes known as "Shotgun" cable as it resembles the barrels of a double barrelled shotgun
Highly flexible double insulated two x 50mm2 core cable.
This Twinflex cable is much neater and easier than taping or cable tying two single cables together.
Price shown is per metre
TIP! If for example you require 3 metres, just order quantity 3, we will supply one continuous length of 3mtrs.
|Cable size||50.0mm² / # 0 AWG|
|Number of Cores||2|
|Nominal conductor construction (Wires x Ø mm)||N/A|
|Max conductor resistance (Ohm/per km)||0.550 Ohm|
|Outer Cable diameter (mm)||13.50mmx28mm|
|Minimum Insulation Thickness (mm)||1.2mm|
|Insulation Type||PVC type TI1|
|Max. Working Voltage||300 / 500V|
|Cores Colours||Red / Black|
25mm2 Battery cable
Sold by the metre or multiples of
Reel sizes available 10, 30, 100mtrs
"Tinned" also available for marine use
Professional quality automotive MEGA fuse holder.
BULK PACKS AVAILABLE, 10, 50, 100
Battery terminal with M10 stud fitted with wing nut fixing
Poistive & Negative options available
OFFSET CONNECTION NEGATIVE BATTERY TERMINAL
35mm2 CSA (Cross sectional area)
PVC INSULATED 240.00 AMP CABLE.
Available in RED or BLACK
Tinned cable for MARINE use available
ANDERSON SB350 (500 Amp) Power Connector range with contacts / terminals
