VICTRON ORION TR 24/12 10A

DC-DC CONVERTER

VOLTAGE REDUCER

INPUT 18 -36VDC OUTPUT 12VDC

POWER 120W (10A)

NON-ISOLATED OUTPUT/INPUT

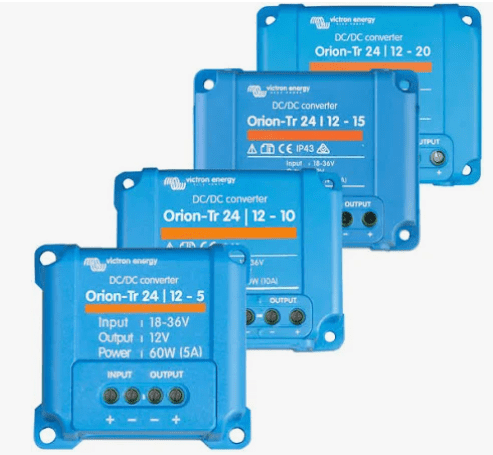

The Victron Energy Orion-Tr non-isolated DC-DC converter is a compact, high efficiency (>95% at full load) DC-DC converter for reducing the voltage from a 24V source to a nominal 12V output. This is useful if your vehicle has a 24V starter or leisure battery system and you want to run 12V appliances from it (which are much more readily available than 24V versions).

The wide input voltage range of 18-35V allows the converter to maintain a stabilised 12.5V output, even when the 24V bank is being charged. It has a continuous output current capability of 10A (power of 120W) with a peak of 15A and a low off-load (standby) current of <35mA.

VERY SIMPLE INSTALLATION (only 4 connections)

95 x 75 x 40mm
